Equipped with a powerful diesel engine with a power of 129kw, the rig can easily handle tough drilling conditions. Our Subsea Exploration Rig is designed to withstand harsh environments, making it a reliable tool for marine-based exploration projects.
The Wireline coring capabilities of the rig include BTW, BQ, NTW, NQ, HTW, HQ, and PQ (m), allowing for a wide range of drilling depths.
Whether you're exploring for minerals, oil, or gas, our Deep Exploration Rig has the necessary features to help you achieve your goals.
| Model | GL-600 | GL-800 | GL-1000A | GL-1000B | GL-1600A | GL-1600B | |
| Drilling Capacity | BTW (m) BQ | 650 | 1200 | 1400 | 1400 | 1800 | 1800 |
| NTW (m) NQ | 600 | 1000 | 1200 | 1200 | 1600 | 1600 | |
| HTW (m) HQ | 300 | 800 | 1000 | 1000 | 1200 | 1200 | |
| PQ (m) | 600 | 800 | 800 | 1000 | 1000 | ||
| Hydraulic system | Rated pressure MPa |
Main pump :95ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
Main pump :95ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
Main pump :115ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
Main pump :115ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
Main pump :145ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
Main pump :145ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
| Cooling method | Water Cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling | |
| Engine parameters | Model | Yuchai 4-Cylinder 92kW | Yuchai 6-Cylinder 92kw | Weichai 6-cylinder 129kw | Weichai 6-cylinder 129kw | Weichai 6-cylinder 147kw | Cummins 6-cylinder 154kw |
| Rated power Kw | 92 | 92 | 129 | 129 | 147 | 154 | |
| Rated speed rpm | 2200 | 2200 | 2200 | 2300 | 2300 | 2300 | |
| Power head parameters | Maximum torque N.m | 1400 | 1800 | 1800 | 2600 | 3500 | 3500 |
| Maximum speed rpm | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Feed stroke m | 1.8 | 1.8 | 1.8 | 3.5 | 3.5 | 3.5 | |
| Lifting force kN | 240 | 300 | 360 | 360 | 400 | 400 | |
| Thrust force kN | 120 | 150 | 180 | 180 | 200 | 200 | |
| Wireline coring Winch Parameters | Rope capacity m | 800 | 1000 | 1200 | 1200 | 1600 | 1600 |
| Lifting force kN | 15 | 20 | 24 | 24 | 31 | 31 | |
| Lifting speed m/min | 110 | 110 | 110 | 110 | 110 | 110 | |
| Wire rope diameter mm | 6 | 6 | 8 | 8 | 8 | 8 | |
|
Mast Parameters |
Total height/m | 6.1 | 6 | 6.6 | 8.5 | 8.5 | 8.5 |
| Drilling angle° | 45-90 | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 | |
| Sliding stroke mm | 800 | 1200 | 1200 | 1200 | 1200 | 1200 | |
| Foot Clamp parameters | BQ/NQ/HQ/PQ | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | |
|
Track parameter |
Maximum load-bearing capacity t/ Climbing angle ° |
6/20 | 6/20 | 8/20 | 9/20 | 10/20 | 10/20 |
| Maximum driving speed km/h | 2 | 2 | 2 | 2 | 2 | 2 | |
| Mud pump | BW100 | BW100 | BW100 | BW160 | BW160 | BW160 | |
|
Transport dimensions |
Length*Width*Height:mm | 4500*1900*2300 | 4600*1900*2650 | 5900*2100*2800 | 5900*2200*3000 | 6100*2200*3050 | 6100*2200*3050 |
| Total Weight(t) | 4.6 | 7.5 | 7.8 | 8.8 | 10 | 10 | |

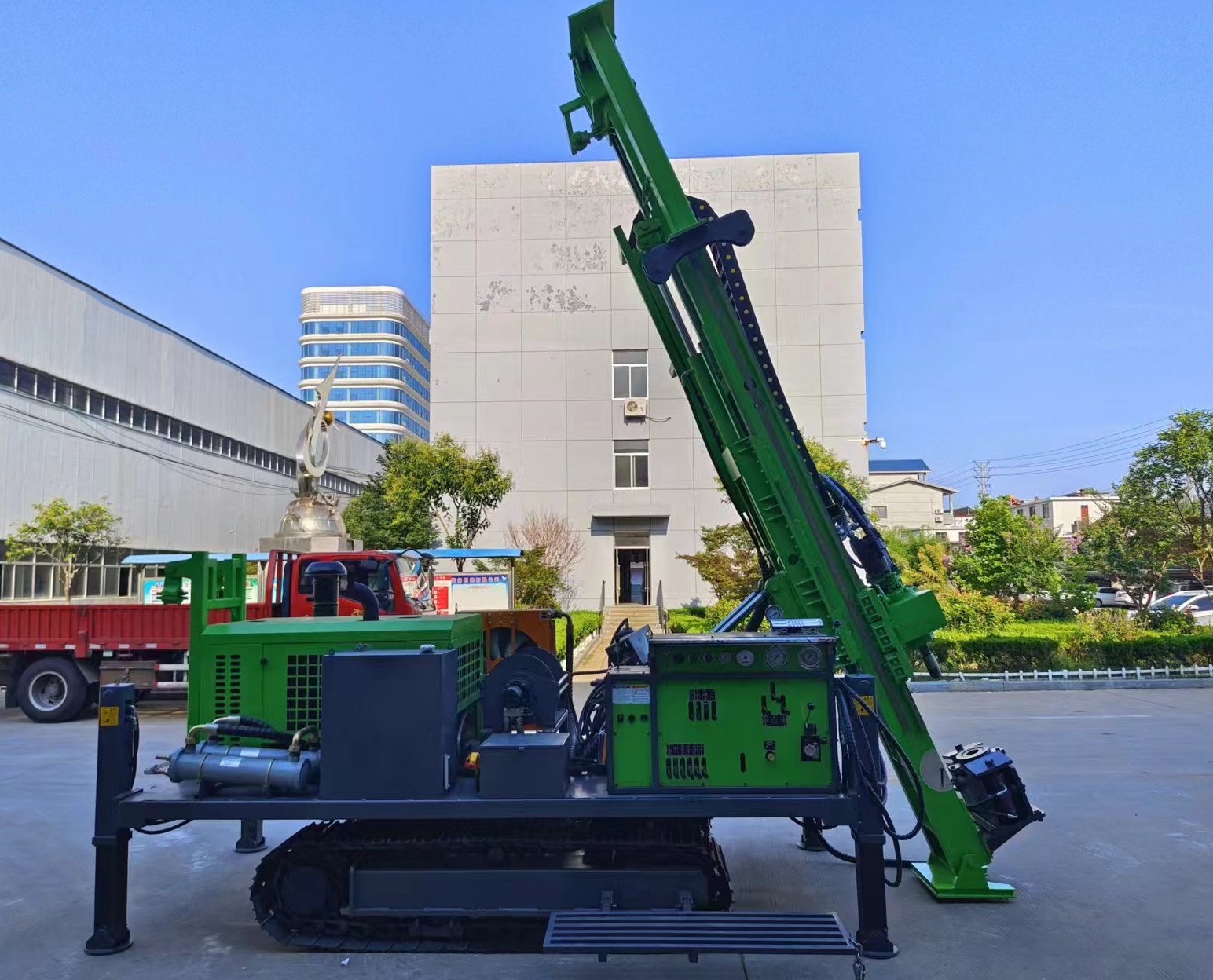

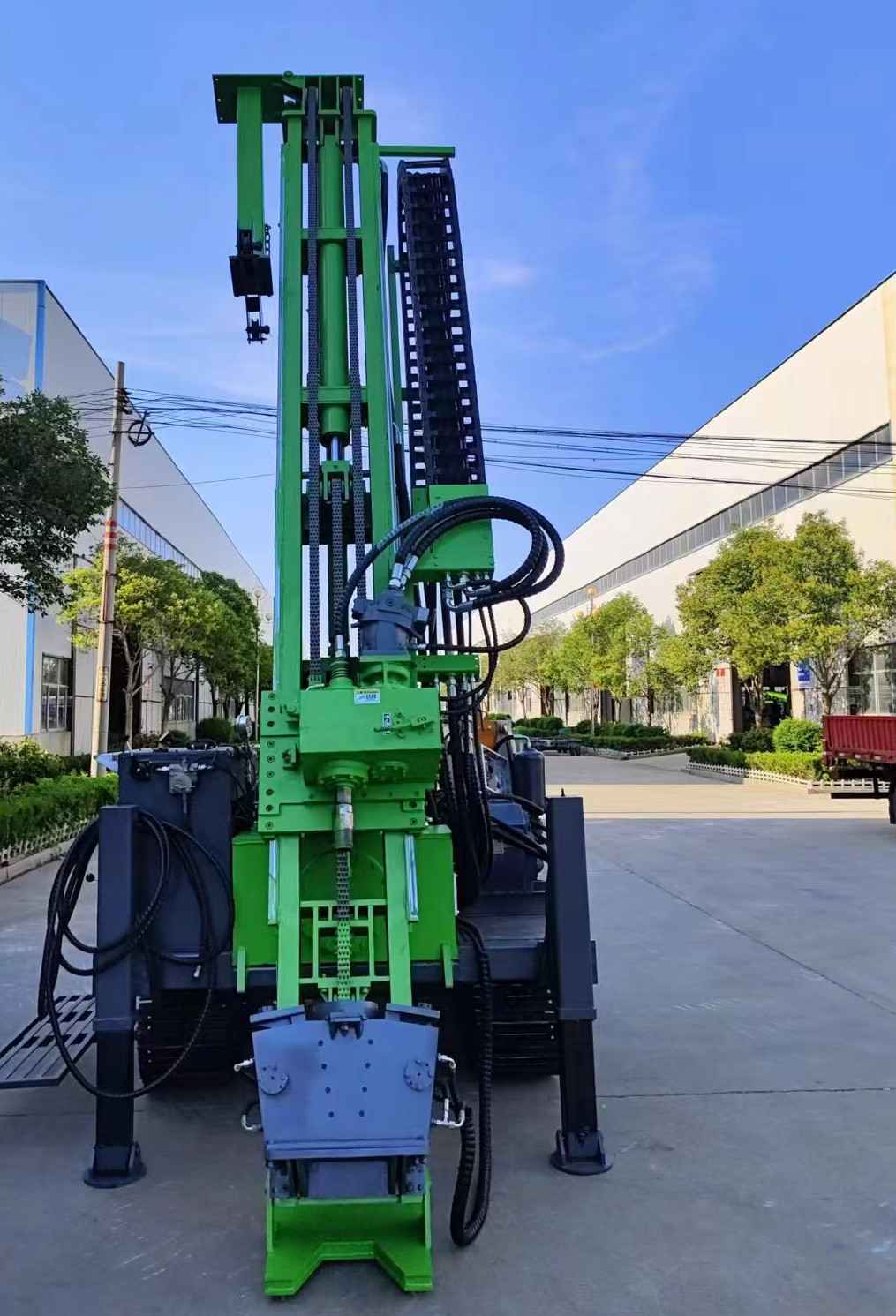

The GL-1000A model is equipped with wireline coring capabilities that can handle BTW, BQ, NTW, NQ, HTW, HQ, and PQ (m) sizes. This feature is highly beneficial for exploration drilling projects that require accurate core samples. The mud pump included with this rig is the BW160, which provides high-pressure pumping to ensure efficient drilling operations.
One of the most convenient features of the GL-1000A is its foot clamp. The through-hole of the foot clamp is 146mm, which is perfect for securing drill rods and ensuring stable drilling operations.
If you are looking for a reliable and efficient exploration drilling rig, the Glorytek GL-1000A is an excellent choice. It has a minimum order quantity of 1 set and costs around $44,000. The rig is packaged in seaworthy packing and can be delivered within 20 days after the advance payment. Payment terms include a 30% advance payment via T/T, and the remaining 70% payment via T/T before dispatching from the factory. The GL-1000A has a supply ability of 10 sets every month, making it a highly accessible option for exploration drilling projects.
Product Packaging:
Shipping:
Q1: What is the brand name of the exploration drilling rig product?
A1: The brand name of the exploration drilling rig product is Glorytek.
Q2: What is the model number of the exploration drilling rig product?
A2: The model number of the exploration drilling rig product is GL-1000A.
Q3: Where is the exploration drilling rig product made?
A3: The exploration drilling rig product is made in China.
Q4: What certifications does the exploration drilling rig product have?
A4: The exploration drilling rig product has CE, TUV, and SGS certifications.
Q5: What is the price of the exploration drilling rig product?
A5: The price of the exploration drilling rig product is $44,000.
