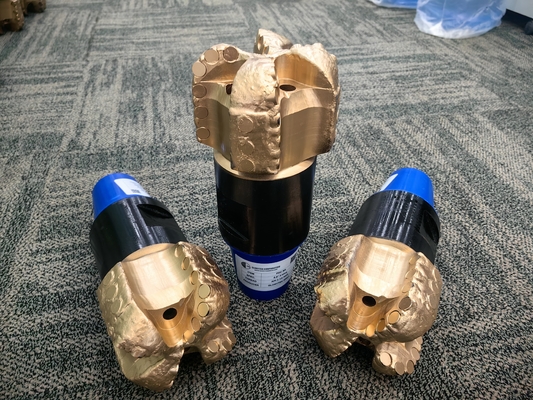

PDC Drill Bit
Product Description
PDC bits are drilling tools used in the oil and gas industry to penetrate rock formations.
These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters.
PDC bits are known for their high drilling efficiency and extended durability.
The diamond cutters on PDC bits are bonded to a tungsten carbide substrate for added strength.
PDC bits are designed to provide fast and efficient drilling in various formations, including soft, medium, and hard rock.
Technical Parameter
| Bit Type | 6" | 8-1/2" | 8-1/2" | 12-1/4" | Bit Type | 17-1/2" GM1606T |
| IADC Code | M423 | M432 M332 |
M323 | M432 M332 | IADC Code | M323 |
| Blade | 5 | 6 | 8 | 6 | Blade | 6 |
| Cutter Size (mm) | Φ13
MM
|
Φ16
MM
|
Φ13
MM
|
Φ16MM | Cutter Size (mm) | Φ16MM;Φ13MM |
| Nozzle Qty/Type | 5 | 13.2 | 9.6 | 30.78 | Cutter Qty | Φ16×58;Φ13×81 |
| Nozzle Qty/Type | 3NZ | 6NZ | 4NZ | 6NZ | Nozzle Qty/Type | 8NZ |
| Gauge Length | 1.5" | 2.2" | 2" | 2.5" | Gauge Length (mm) | 110 |
| Connection | 3-1/2" API REG | 4-1/2" API REG | 4-1/2" API REG | 6-5/8" API REG | Connection | 7-5/8" API REG |
| Make up Torque(KN.m) | 10.4~11.4 | 24.1~26.5 | 24.1~26.5 | 51.7~56.9 | N.W./ G.W.(KG) | 338/388 |
| Rotary Speed(rpm) | 60-260 | 60-260 | 60-260 | 60-260 | Nozzle Size (inch) | 10/32 |
| Weight on Bit(KN) | 8-50 | 20-100 | 20-100 | 30-140 | Rotary Speed(Rpm) | 60-260 |
| Max.WOB(KN) | 90 | 130 | 130 | 180 | Weight On Bit(KN) | 30-200 |
| Flow Rate(lps) | 10-30 | 22-35 | 22-35 | 38-70 | Max.WOB (KN) | 240 |
| Flow Rate(lps) | 45-80 |
Company Profile
Glorytek Industry (Beijing) Co., Ltd, based in Beijing, China, is a leading manufacturer and exporter of high-quality drilling equipment and parts. With a highly experienced team of designers and engineers, we successfully deliver projects tailored to our clients' requirements. Our products find extensive use in mining, water well drilling, exploration, anchor grouting, side slope protection, oil and gas, underwater rock drilling projects.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are an integrated corporation specializing in manufacturing and exporting.
Q: Do you supply other drilling tools?
A: Yes, we provide a complete range of drilling tools, including drill pipes, tricone bits, PDC bits, drag bits, and DTH hammers. We also offer drilling equipment like rigs, mud pumps, air compressors, and more.
Q: What payment terms do you accept?
A: Typically, we prefer a 30% advance payment via T/T upon purchase order, with the remaining 70% payment due before shipping. For small orders, we require 100% advance payment via T/T.
Q: What is your delivery time?
A: The delivery time depends on the quantity of your order. Generally, we can deliver within 3-5 days.
Q: How do you ensure product quality?
A: We have a professional QC team that conducts strict inspections and testing for every order before shipping. This ensures the quality of our products.
