Glorytek can provide the D24x40 Hdd Drill Rod for Vemeer Drilling rigs with long life service and good price.
With National initiative integral drill rod and intermediate-frequency heat treatment technology make this kind of product have the higher Mechanical Properties than the similar products.
Be treated by liquid nitrogen treatment process, the joint thread is deeper than the traditional processing technic which greatly prolong the service life of products.
| Model of HDD machine | Thread type | OD of the tube (mm) | OD of tool joint (mm) | ID of tool joint (mm) | Wall thickness of tube (mm) | Length (mm) | Grade |
Rated Torque (N.M) |
Min. Bending Radius (m) |
| D24x40 |
FS1 #600
|
60 |
66.7 |
22
|
7.11 | 3048 | S135 | 5440 | 33 |
Rod Diameter: 2.375" (6.03 cm). Drill Rod Thread: Firestick #600.

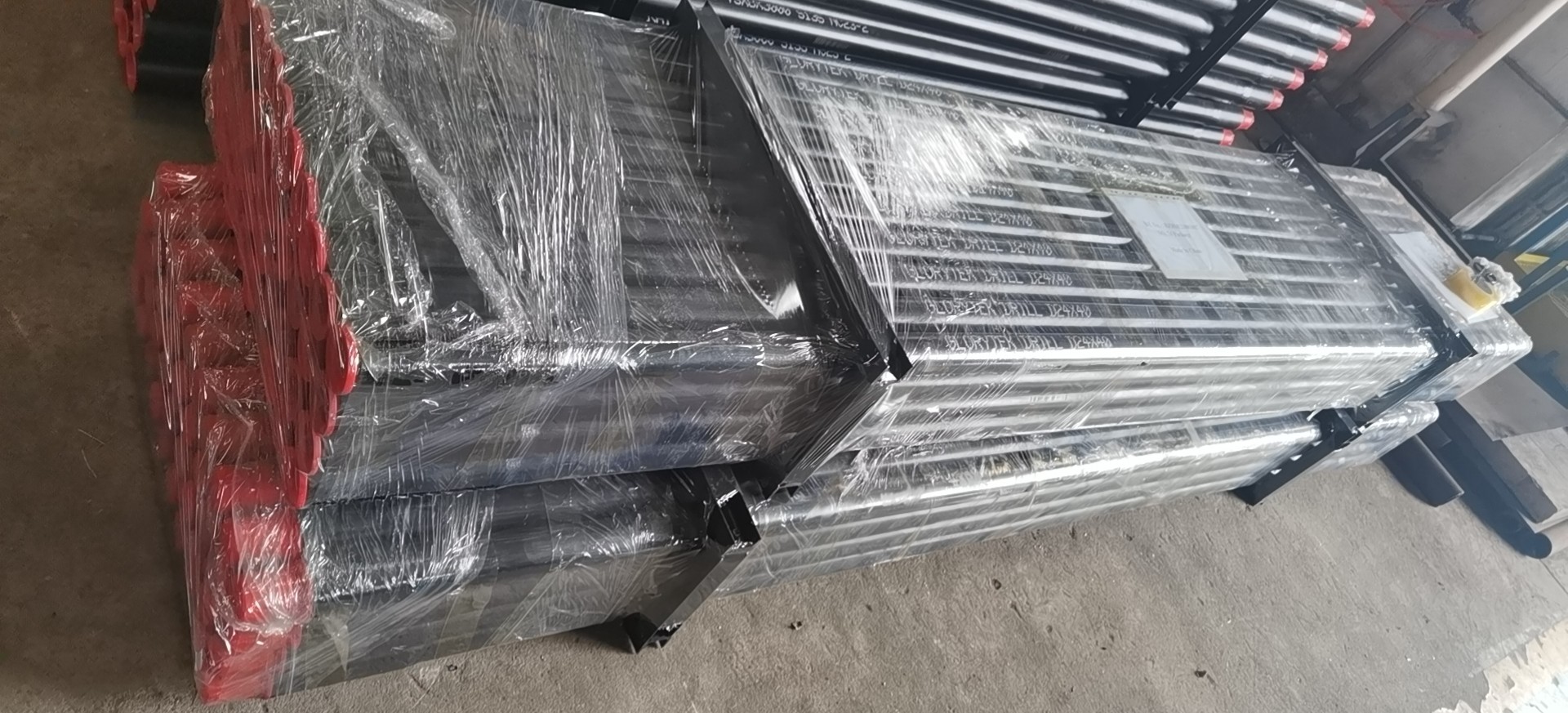

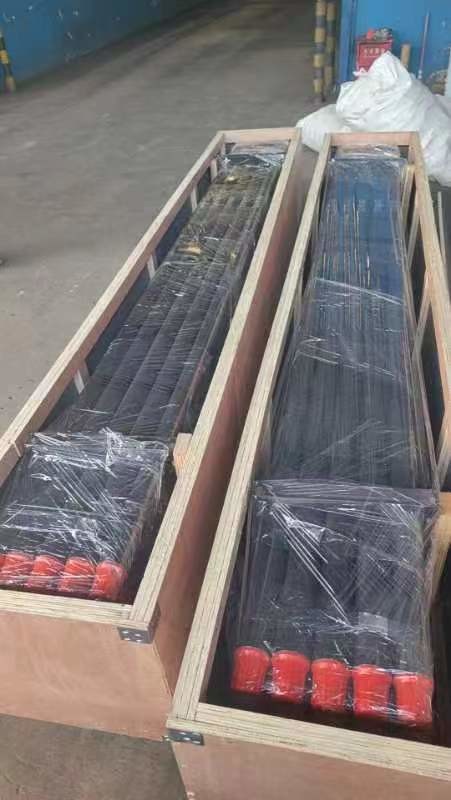

Packing: The Water Well Drill Rod is normally packed by steel frame.
Delivery: Normally in stock
Shipping method: by sea or by air or by train
Hot extrusion machine
Adopt T-connector hydraulic for joints forging, to improve the metallo graphical fibrous tissue and impact toughness. So guarantee the comprehensive mechanical properties of the welding joints.
Heat treatment equipment
To use controllable atmosphere heat treatment equipment. Ensure each workpiece sorbite transfermation more fully, greatly enhance the mechanical properties of joints.
Thread machining equipment
To use CNC machine tool to thread finish machining and thread close tolerances.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects, etc.
We own the most advanced pipe production line in China.The technology of heat treatment product line has achieved to the world-class leading levels, we have 200T Friction Welding Machine is the largest model welder, the largest welding capacity can reach drill rod of 200mm OD.
Pre-sale service:
1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type
After-sale Service:
Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Technical Support will be available in any time. We could provide the professional suggestion for you.
Online support to help solve the problem.
Shipping spare parts immediately if requested,
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
