3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling

1 sets
MOQ
To be negotiated
Price
3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Pressure: 12-35Mpa
Pump Manufacturer: Mud Pump Manufacturer
Valve: API#7
After Sale Service: Video Support
Maximum Flow: 150L/min
Package Gross Weight: 3174.00kg
Type: Triplex Mud Pump
Series: Triplex Plunger Pumps
Ratio Of Gear: 4.286:1
Vale: API#8
Liner Dia: 70 Mm
Power Type: Diesel
Capacity: 240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h
Suction Inlet Size: 12 Inches
Stroke Length: 12 Inches
Highlight:

3nb130 drilling mud pump

,

drilling mud pump For Water Well

,

3nb260 mud pumps for drilling rigs

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGS,TUV
Model Number: 3NB series mud pump
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 20 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description

The role of mud pump:

A mud pump is a type of reciprocating positive displacement pump that is specifically designed for use in drilling operations. It helps to circulate the drilling fluid (or “mud”) through the drill bit and back up to the surface. The mud pump also provides pressure to keep the drill bit from becoming plugged.



The drilling mud is also used to suspend and carry out drill cuttings from the drill bits as it is brought in and out of the hole. This ensures that the drill bit does not clog and overheat, and makes the entire drilling operation smooth and safe.

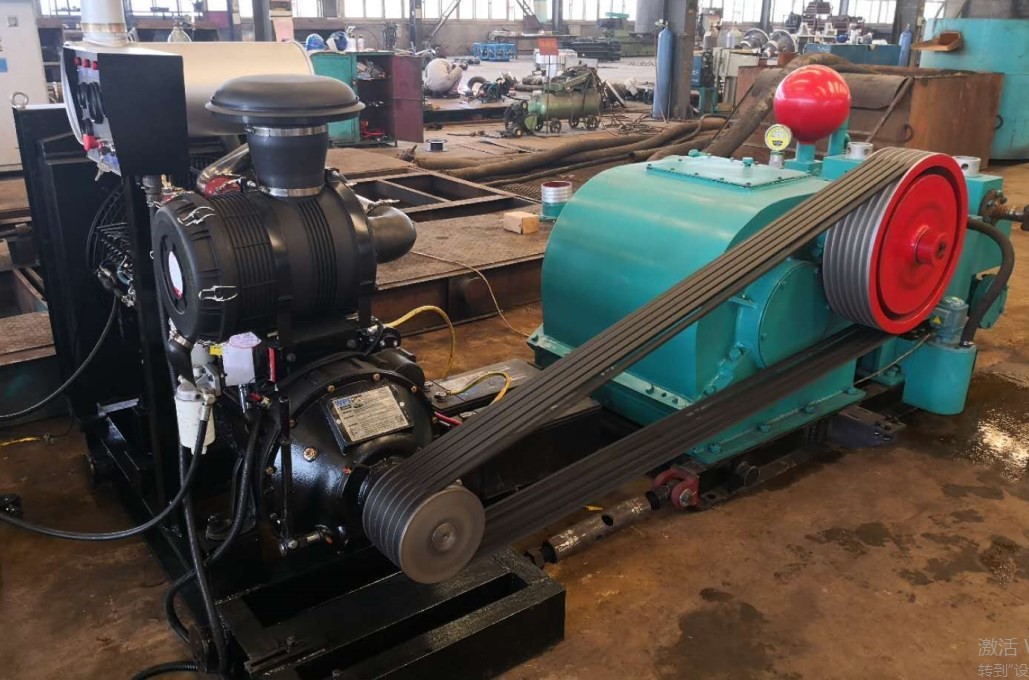

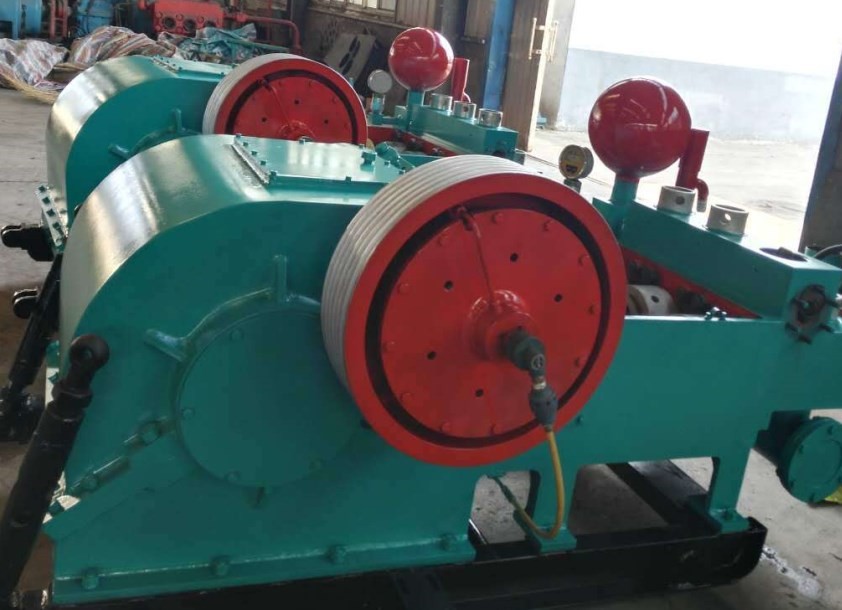

Detailed Photos:


3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling 0
3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling 1

Product Parameters:

Model 3NB-130
Piston diameter (mm) 100 110 120 130 140
Displacement (L/S) 8.34 10.3 12.2 14.3 16.6
Pressure (Mpa) 10 8 7 6 5
Input speed (r/min) 565
Pump speed (spm) 135
Suction pump dia. Φ152
Discharge pump dia. Φ65
Piston Stroke (mm) 160
Input Power Diesel Engine 130HP
Electric Motor Y315M-6 90KW
Dimension (mm) 2260*1380*1260
Weight (kg) 3174








Model 3NB-260
Piston diameter (mm) 110 120 130 140 150 160
Displacement (L/S) 11 13 15.4 18 20.5 23.4
Pressure (Mpa) 15.5 13.1 11 9.5 8.3 7.3
Input speed (r/min) 618
Pump speed (spm) 133
Suction pump dia. Φ203
Discharge pump dia. Φ76
Piston Stroke (mm) 175
Input Power Diesel Engine G128LD 206KW
Electric Motor Y335M-6 185KW
Dimension (mm) 3000*1650*1840
Weight (kg) 6000








3NB350
Model Type input Power Motive power

Rated pump

speed

Stroke

length

Gear Ration
3NB-350

Single Action

Triplex

350hp

6190ZC-1(diesel engine)

Y400-6.28KW(motor)

120 Impact/min 180 4.483

Rated input

speed(Rev/min)

Continuous

speed(Rev/min)

Inhalation

diameter

Discharge pipe

diameter

Dimensions(mm) Weight
582.8 540 203mm 76mm 3100*2080*2015 8.058t








Application



It can be used in the field of geological exploration, oil drilling, mining, coal construction, geology, engineering construction supporting, chemical industries etc.

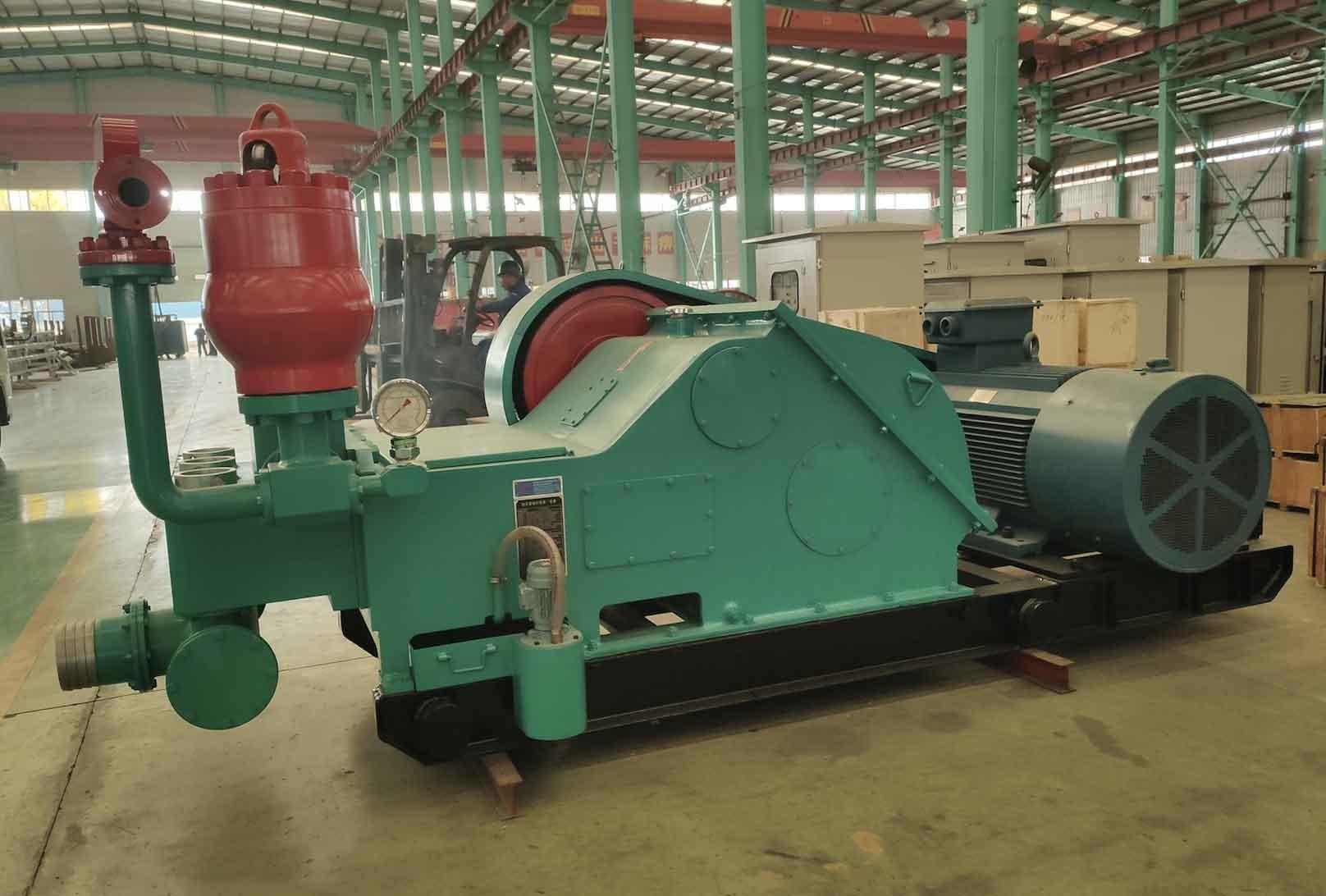

3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling 2
Packaging

3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling 3

Company Profile
3nb130 3nb260 3nb350 Drilling Mud Pump For Water Well Drilling 4

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our Advantages
1.Excellent product quality
2.Competitive prices
3.One on one customer service
4.Flexible payment methods
5.Timely quotation
6.On time deliveries
7.Sincere after-sales service
8.Provide a complete set of customized problem solutions for customers
