▶Description of structure:
The pump head is mainly composed of a cylinder liner, a cylinder top sleeve, a cylinder head, a piston, a tie rod, a steel ball, a valve seat, a valve cover and the like. It is a bottom-in and top-out type.
The rod drives the piston to reciprocate to control the steel ball and The valve seat is opened and closed for suction and discharge operations.
The cylinders have a common suction and drainage chamber. An inlet pipe joint is installed on the waist flange on the side of the suction chamber to connect the suction hose and the water filter, and the other end is blocked with the inlet pipe end cap.

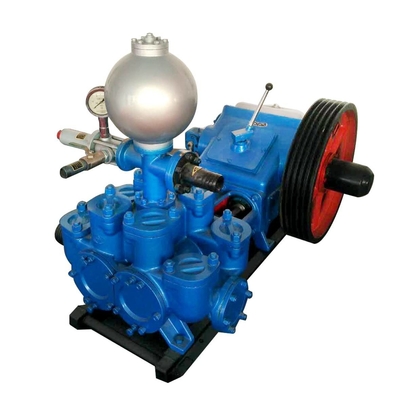

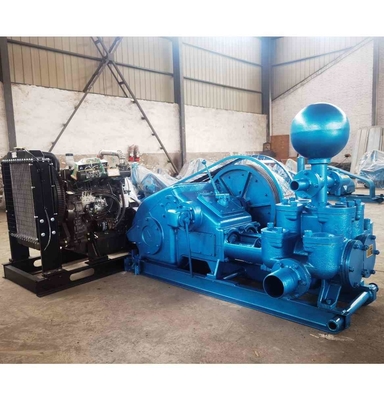

▶Detailed Photos:
▶Product Parameters:
This is BW series mud pump, a kind of horizontal type, double-acting reciprocating piston pump. The followings are about parameters of different types of BW drilling mud pumps.
| Type:BW250 |
Horizontal double cylinder reciprocating single acting piston pump |
| Cylinder Liner Dia(mm) |
80 |
65 |
| Piston Stroke(mm) |
100 |
| Theoretical Flow Rate(L/min) |
250 |
145 |
90 |
52 |
166 |
96 |
60 |
35 |
| Rated Pressure(MPa) |
2.5 |
4.5 |
6 |
6 |
4 |
6 |
7 |
7 |
| Storkes Per Minute |
200 |
116 |
72 |
42 |
200 |
116 |
72 |
42 |
| Input Power(kW) |
15 |
| Overrall Dimension(L×W×H) (mm) |
1000×995×650 |
| Weight(kg ) |
760 |
|
|
| Type:BW850/2 |
Horizontal double cylinder reciprocating double action piston pump |
| Cylinder Liner Dia(mm) |
150 |
| Piston Stroke |
180 |
| Theoretical Flow Rate(L/min) |
600 |
850 |
| Rated Pressure(MPa) |
3 |
2 |
| Strokes Per Minute |
58 |
82 |
| ID of Suction Pipe |
127 |
| ID of Discharge Pipe |
64 |
| Input Rotating Speed |
470 |
| Input Power(kW) |
40 |
| Overrall Dimension(L×W×H)(mm) |
2000×1030×140 |
|
|
▶Application
It can be applied to the geological exploration and engineering exploration of railways, water conservancy, metallurgy, construction, geology, foundation plugging, grouting, etc. This slurry pump is used to provide flushing fluid in the borehole during geophysical exploration, and supply the flushing fluid to holes in the working rock of a working geological rig.
