3 Inches Hdd Drill Rod For Directional Drilling Construction

1 piece
MOQ
To be negotiated
Price
3 Inches Hdd Drill Rod For Directional Drilling Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Hot Rolling,high Strength
Diameter: 3 Inches
Compatibility: Compatible With All Major HDD Rigs
Wall Thickness: 6mm
Tensile Strength: 30,000 Lbs
Rated Torque: 13600nm
Rod Type: One-Piece Drill Rod
Connection Strength: High
Processing Type: Forged One Piece, Forging
Material: High-strength Alloy Steel
Length: 10 Feet
Usage: Horizontal Directional Drilling
Type: D23*30
Drill Rod Type: One-Piece Drill Rod
Grade Of Rods: S135
Highlight:

3 inches hdd drill rod

,

Construction hdd drill rod

,

3 inches hdd drill pipe

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGS,TUV
Model Number: HDD drill rod
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5-7 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 pieces per month
Product Description


1.Description


-HDD Drill Rod is a tool applicable for transferring torque and tension of drillers in the process of directional drilling construction. Due to the fact that it has to bear torsion, tension, bending, friction and vibration in the process of directional construction, the requirements for processing process are very strict.

-After laboratory tests, both ends of a pipe are upsetted and proceeded to overall heat treatment, then friction welded. Before finished drill pipes are plated and packaged, a series of tests have to be implemented including hardness, metallurgical structure, physical performances, etc. HDD Drill Rod is widely used in municipal engineering like mining, bridge, tunnel, high way, railway, hydro-power.




-With the unaided design capabilities and advanced flow of production, as well as a whole set of high precision equipment, our high-quality products well favored by the majority of customers. We have been striving to develop new and innovative products to meet the changing needs of the drilling industry.


2.Detailed Photos



3 Inches Hdd Drill Rod For Directional Drilling Construction 0
3 Inches Hdd Drill Rod For Directional Drilling Construction 1

3.Main Technical Parameters

VERMEER D7x11 SERIES II
D7x11 (F120 #200)
48
38
1.829
VERMEER D9x13 SERIES II
D7x11 (F120 #200)
48
42,4
1.829
VERMEER D20x22 SERIES II
D24A FFW 48 (F140 #400)
57,15
48,3
3.048
VERMEER D24x40 SERIES II
D24x40 FFW F1 (F160 #600)
68
60,3
3.048
VERMEER D36x50 SERIES II
D36x50 FFW (F260)
70
60,3
3.048
VERMEER D55x100
D80x100 FFW F1 (F180 #800)
93
88,9
4.572
VERMEER D80x100 SERIES II
D80x100 FFW F1 (F180 #800)
93
88,9
4.572
VERMEER D100x120 SERIES II
D100x120 FFW (F289)
108
88,9
6.096














4.Quality Control
We provide the proper drill pipes (also called drill rods) for any horizontal directional drilling (HDD) projects. The

HDD drill rods are compatible with Vermeer and Ditch Witch equipment. All of our HDD dilling pipes are made from high-strength steel available with steel grade G105 or G135 (135,000 psi minimum yield strength), so they can be used in extreme environments. We use state of art CNC machines and friction welding machine for all the threading and welding process. This allows our product to reach the industrial high level of precision and accuracy.

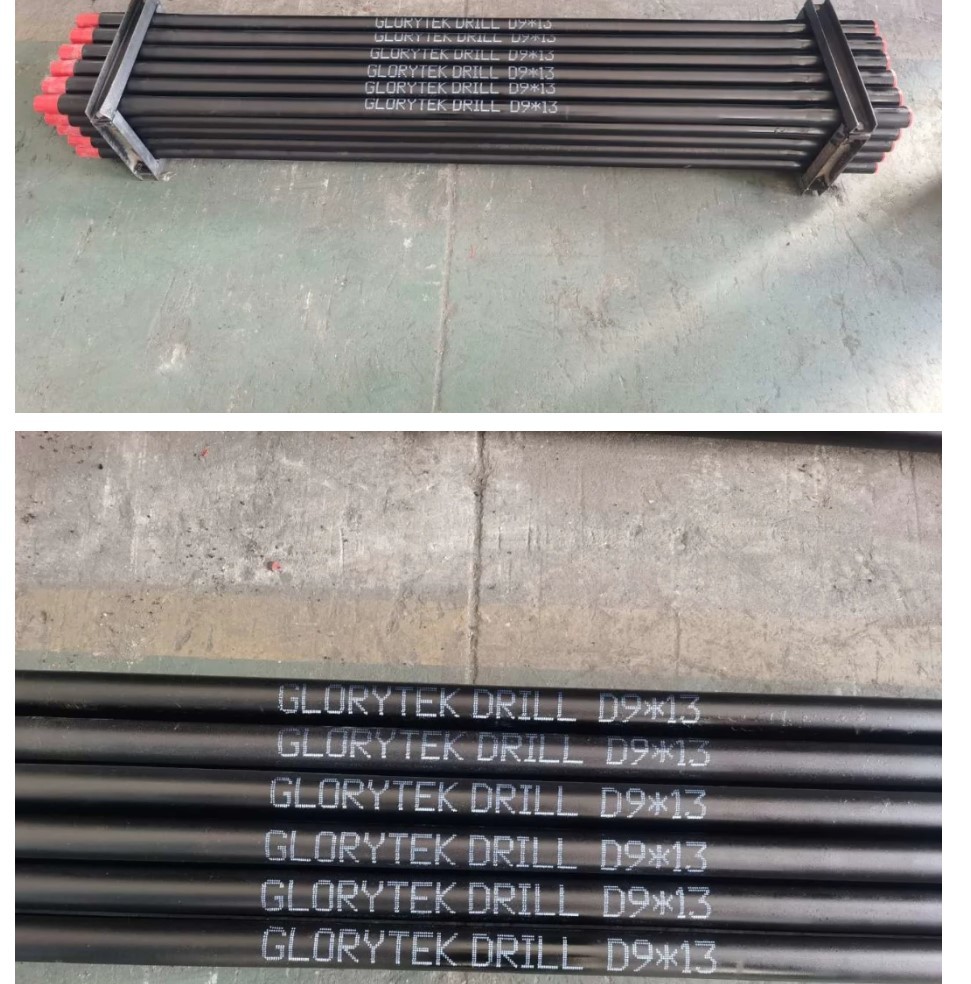

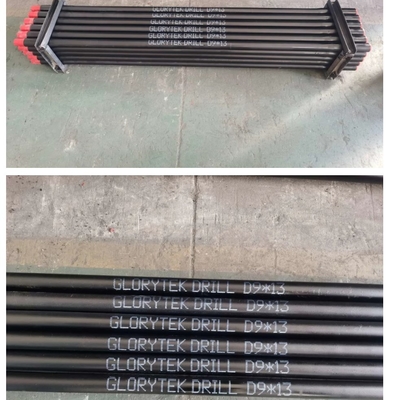

5.Packaging
3 Inches Hdd Drill Rod For Directional Drilling Construction 2
3 Inches Hdd Drill Rod For Directional Drilling Construction 3

6.Company Profile
3 Inches Hdd Drill Rod For Directional Drilling Construction 4

3 Inches Hdd Drill Rod For Directional Drilling Construction 5

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.



Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
