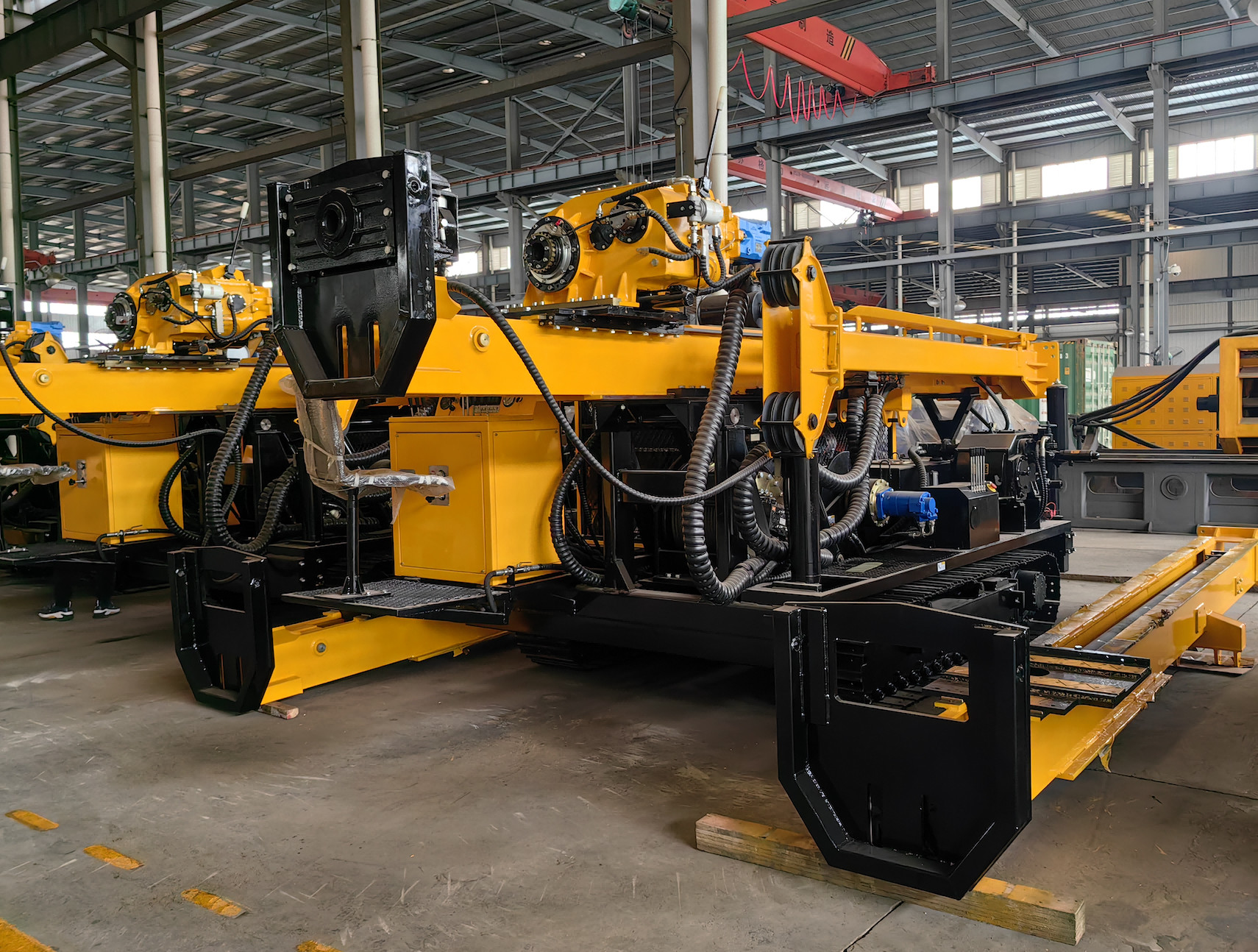

GLDX-4 Full Hydraulic Geological Mining Exploration Coring Exploration Drilling Rigs
Glorytek Drill has developed the GLDX-4 Full Hydraulic Geological Exploration Drilling Rig successfully according to the situation of China.
The GLDX-4 is a full hydraulic core drilling rig. Here's a description of its key features:
Hydraulic System: The GLDX-4 drilling rig is equipped with a full hydraulic system, which provides efficient power and control for various drilling operations. Hydraulic systems are known for their reliability, precision, and ability to handle high loads.
Core Drilling: The GLDX-4 is specifically designed for core drilling applications. Core drilling is a method used to extract cylindrical samples of rock or soil from the subsurface. It is commonly used in geotechnical investigations, mineral exploration, and environmental studies.
| Diesel Engine | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) |
| Displacement | 5.9L (1.56 US Gallons) | |
| Power | 132Kw (180HP) | |
| Rated RPM(Factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 1000m(3280feet) |
| NQ | 700m(2296 feet) | |
| HQ | 500m(1640 feet) | |
| PQ | 300m(984 feet) | |
| Drill Head | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
| Max. Torque | 4200 N·m(3108lbf·ft) | |
| Hold Diameter | 98mm(3.85 inch) | |
| Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
| Max. Feeding Power | 60 kN(13480 lbf) |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
