Product Description:

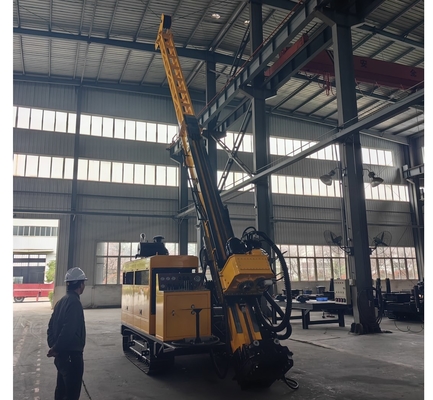

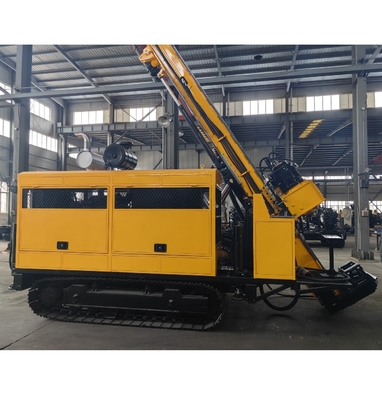

The drill rig adopts full hydraulic driving, travelling with tyre-drawing(with turning device) or crawlers itself(optional). The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.
1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.
Technical Parameters:
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
| Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) | | Displacement | 8.3L (2.19 US Gallons) | | Power | 145kW (195HP) | | Rated RPM(Factory setting) | 2200rpm | | Drilling Capacity | BQ | 1500 m(4920 feet) | | NQ | 1300 m(4264 feet) | | HQ | 1000 m(3280 feet) | | PQ | 680 m(2230 feet) |
| Hydraulic Tank | Capacity | 420 L (111 US Gallons) | | Capacity of Main Hoist | Hoisting Speed (single wire) | 44m/min(bare drum) | | Hoisting force (single wire) | 77kN(17310 lbf) | | Steel Wire Diameter | 18 mm(0.71 inch) | | Steel Wire Length | 60 m(196.85 feet) | | Capacity of Wireline Hoist | Hoisting Speed (single wire) | 100m/min (bare drum) | | Hoisting Force (single wire) | 12 kN(2698 lbf) (bare drum) | | Steel Wire Diameter | 6 mm(0.24 inch) | | Steel Wire Length | 1500 m(4920 feet) |
|
|
|---|
Field of Application:
GLDX-5A(5C) Drill Rig is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
