Product Description:
I. General Introduction

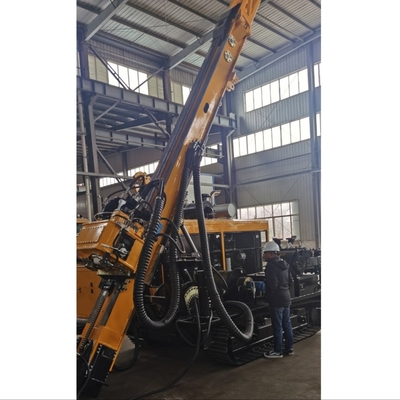

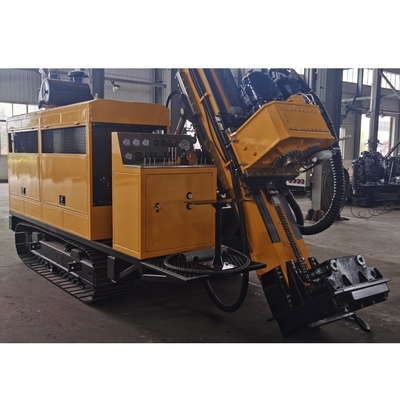

The GLDX-5A(5C) new model Full Hydraulic Core Drill Rig is developed with reference of advanced technique of same kind equipment at home and abroad. The drill rig has a reasonable design and superior performance. It is easy to operate and for maintenance.
1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.
3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
Technical Parameters:
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
| Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) | | Displacement | 8.3L (2.19 US Gallons) | | Power | 145kW (195HP) | | Rated RPM(Factory setting) | 2200rpm | | Drilling Capacity | BQ | 1500 m(4920 feet) | | NQ | 1300 m(4264 feet) | | HQ | 1000 m(3280 feet) | | PQ | 680 m(2230 feet) |
|
| Mud Pump | Type | Reciprocating Pump Triplex Plunger | | Model | BW250 | | Stroke | 100mm(3.9 inch) | | Output volume | 250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min) | | Discharge pressure | 2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 psi) | | Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.18-4.63 inch) | | through hole Ф154mm(6.06 inch) | | Steel Crawler Type | Weight | 13000 Kg | | Dimensions (L × W ×H ) | 6250×2240×2750mm((20.5×7.34×9.02 ft)) | | Tyre-drawing Type | Weight | 10000 Kg | | Dimensions (L × W ×H ) | 6250×2200×2730mm(20.5×7.22×8.96 ft)) |
|
|---|
Field of Application:
GLDX-5A(5C) Drill Rig is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
Glorytek Industry (Beijing)Co.,Ltd.,
located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Contact:
Jane Cheng
Sales Representative
Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270
Mobile:+86-13426420230
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
