Product Description:
I. General Introduction

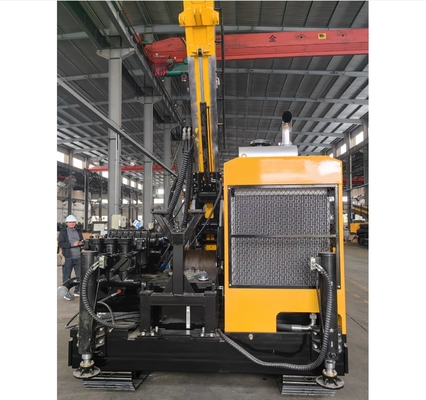

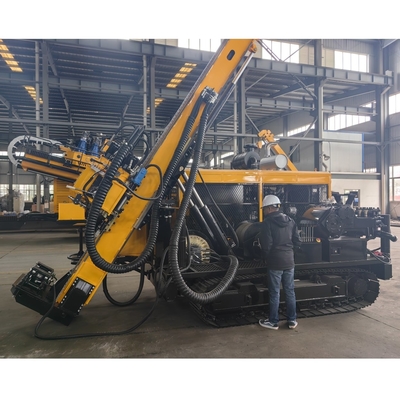

The GLDX-5A(5C) new model Full Hydraulic Core Drill Rig is developed with reference of advanced technique of same kind equipment at home and abroad. The drill rig has a reasonable design and superior performance. It is easy to operate and for maintenance.
The drill rig adopts full hydraulic driving, travelling with tyre-drawing(with turning device) or crawlers itself(optional). The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.
Technical Parameters:
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
| Diesel Engine |
Model |
Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) |
| Displacement |
8.3L (2.19 US Gallons) |
| Power |
145kW (195HP) |
| Rated RPM(Factory setting) |
2200rpm |
| Drilling Capacity |
BQ |
1500 m(4920 feet) |
| NQ |
1300 m(4264 feet) |
| HQ |
1000 m(3280 feet) |
| PQ |
680 m(2230 feet) |
|
|
Field of Application:
GLDX-5A(5C) Drill Rig is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
Glorytek Industry (Beijing)Co.,Ltd.,
located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Contact:
Jane Cheng
Sales Representative
Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270
Mobile:+86-13426420230
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
