Product Description:

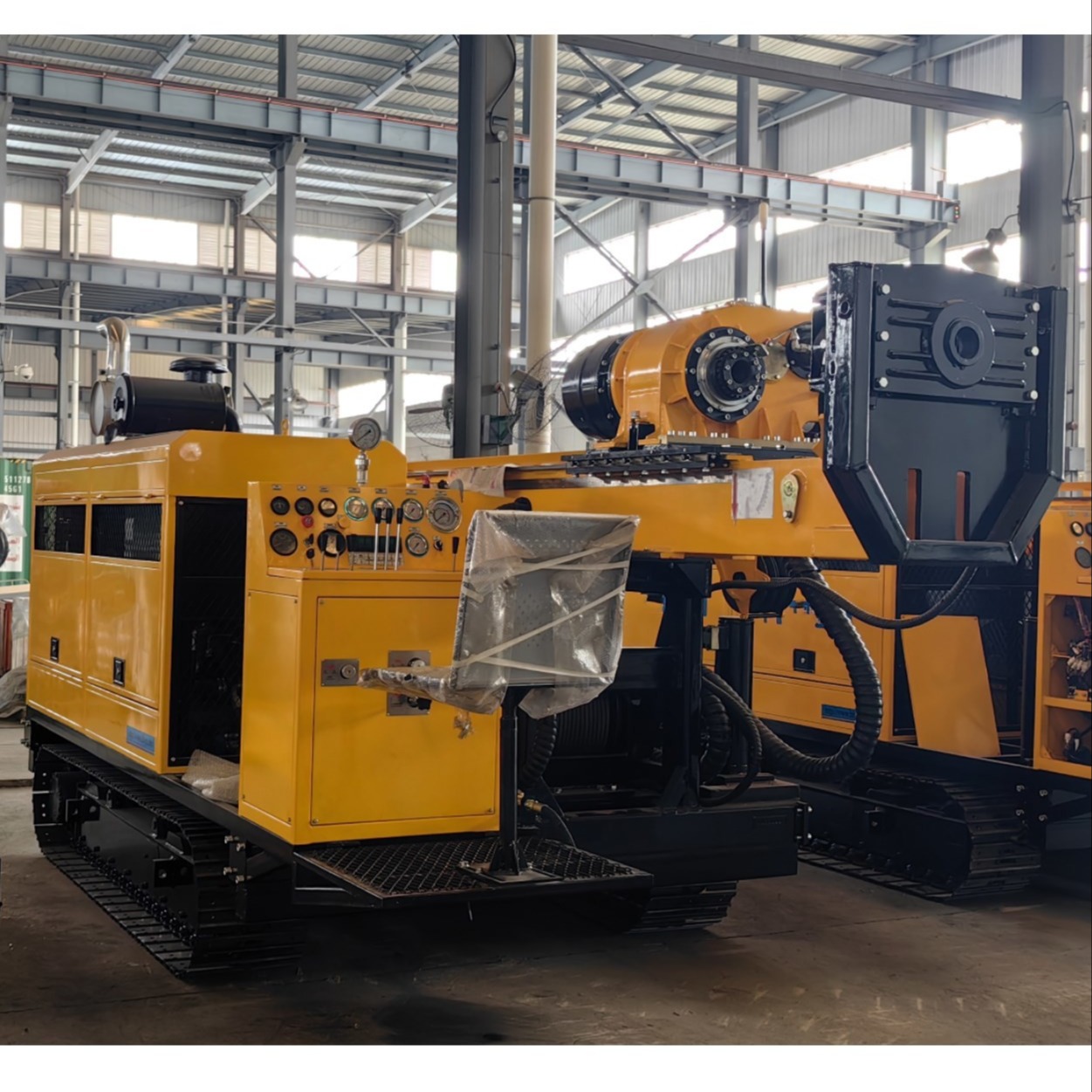

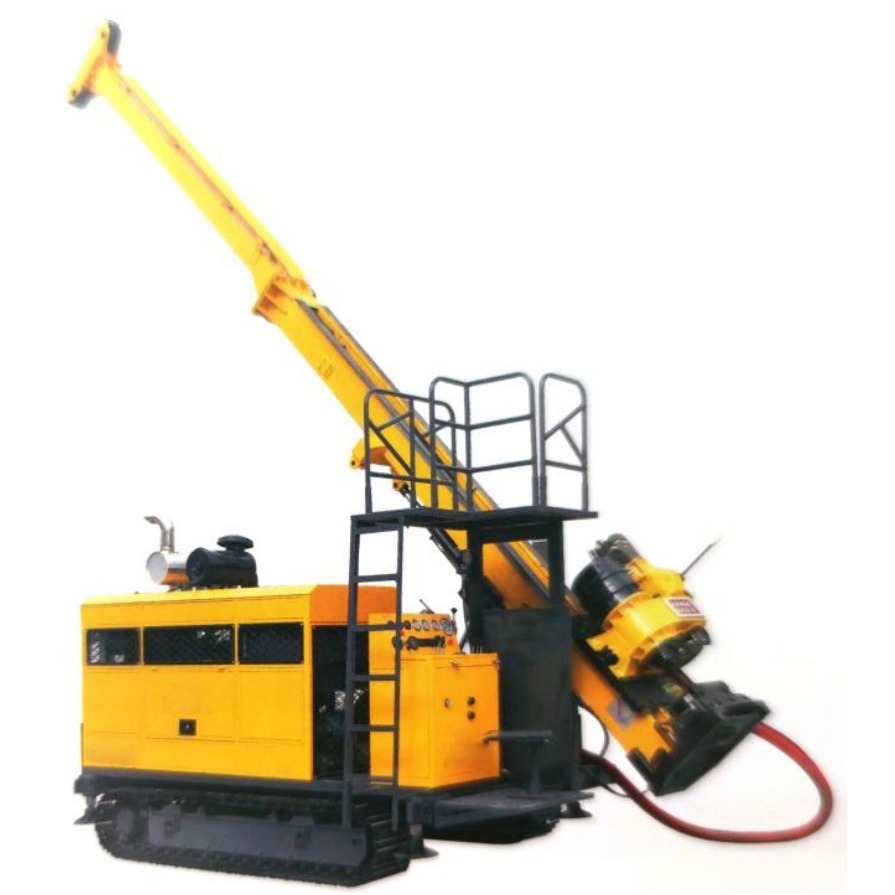

The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.
The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.
Technical Parameters:
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
| Diesel Engine | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) | | Displacement | 5.9L (1.56 US Gallons) | | Power | 132Kw (180HP) | | Rated RPM(Factory setting) | 2200rpm | | Drilling Capacity | BQ | 1000m(3280feet) | | NQ | 700m(2296 feet) | | HQ | 500m(1640 feet) | | PQ | 300m(984 feet) |
| Mast | Mast Height | 9 m(29.52 feet) | | Mast Adjusting Angle | 0°—90° | | Drilling Angle | 45º off horizontal to 90ºvertical down | | Feed Pull | 15000kg(33075 lb) | | Feed Thrust | 6000kg(13230 lb) | | Rod Pull | 3m or 6m(9.84feet or 19.68feet) | | Feeding Stroke | 3500 mm(11.48ft) | | Slippage Stroke | 1100 mm(3.6ft) | | Mud Pump | Type | Reciprocating pump Triplex Plunger | | Model | BW160/10 | | Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch) | | through hole Ф154mm(6.06 inch) | | Others | Weight (platform type) | 9300 Kg(20506 lb) | | Dimensions (L×W×H) | 5100×2200×2450mm | | (16.73×7.21×8.03ft) | | Transport Way | Crawler |
|
|---|
