Product Description:

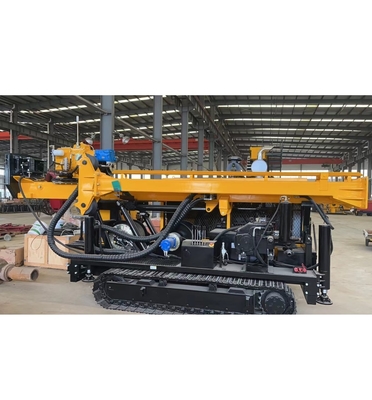

The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China. Under these circumstances, Glorytek Drill has developed the GLDX-4 core drill rig successfully according to the situation of China. This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.
The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.
Technical Parameters:
| Diesel Engine |
Model |
Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) |
| Displacement |
5.9L (1.56 US Gallons) |
| Power |
132Kw (180HP) |
| Rated RPM(Factory setting) |
2200rpm |
| Drilling Capacity |
BQ |
1000m(3280feet) |
| NQ |
700m(2296 feet) |
| HQ |
500m(1640 feet) |
| PQ |
300m(984 feet) |
| Drill Head |
RPM |
Four Shifts/ Stepless Change 0-1100 RPM |
| Max. Torque |
4200 N·m(3108lbf·ft) |
| Hold Diameter |
98mm(3.85 inch) |
| Max. Lifting capacity of Spindle |
150 kN(33720 lbf) |
| Max. Feeding Power |
60 kN(13480 lbf) |
|
Support and Services:
Exploration Drilling Rigs Technical Support and Service
Warranty of GLDX-4 Full Hydraulic Crawler Core Drill Rig:
(1)Within the period of the first year after delivery, the main parts of Core Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
Packing and Shipping:
The packaging and shipping of exploration drilling rigs is as follows:
- Exploration drilling rigs will be carefully packaged, using shockproof and water-resistant materials, to protect them from any damage during transportation.
- The packed exploration drilling rigs will be shipped out using reliable and secure delivery services.
- The delivery time for exploration drilling rigs will depend on the location of the customer.
FAQ:
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
