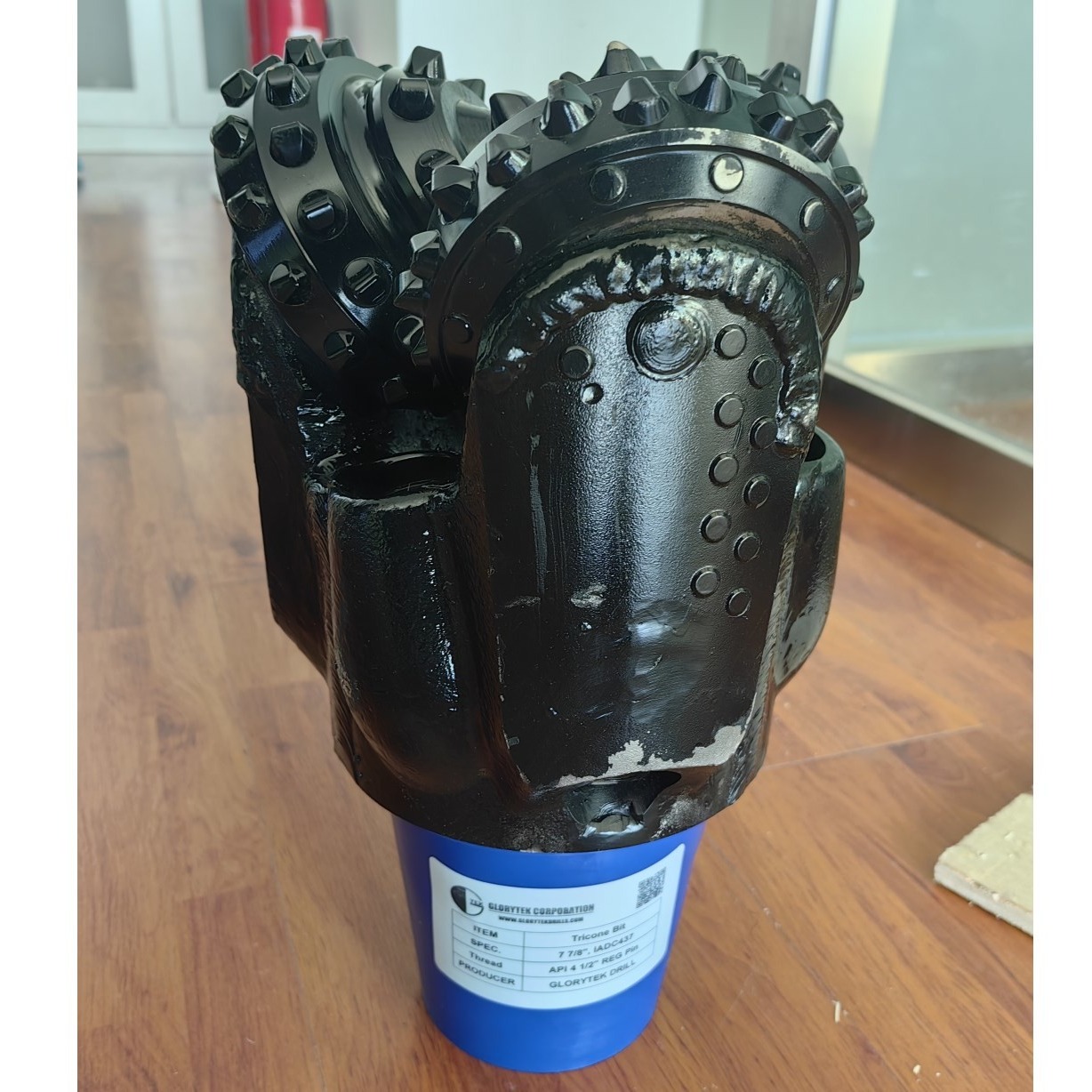

7 7/8" 200mm IADC517/537/637 Geothermal Well Drilling Tricone Rock Bit With Tungsten Carbide Inserts
Roller cone bits are the most widely used in oil drilling and geological drilling. The roller cone bit has the functions of impacting, crushing and shearing the formation rock when it rotates, so the roller cone bit can adapt to various soft, medium and hard formations. According to the type of teeth, the roller cone bit can be divided into milling tooth (steel tooth) roller cone bit, insert tooth (tungsten carbide teeth are installed on the roller cone) roller cone bit; according to the number of roller cones, it can be divided into single cone and double cone , Three-cone and multi-cone bits. The tri-cone bit is the most widely used and most common type at home and abroad.
Tricone bit/tricone rock bit parameters:
| IADC | WOB | RPM | Applicable Formations | ||||||
| (KN/MM) | (r/min) | ||||||||
| (Bit Dia) | |||||||||
| 116 117 | 0.35~0.8 | 150~80 | Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc. | ||||||
| 126 127 | 0.35~0.9 | 150~70 | Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,softshale.soft limestone,ect. | ||||||
| 136 137 | 0.35~1.0 | 120~60 | Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. | ||||||
| 216 217 | 0.4~1.0 | 100~60 | Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect. | ||||||
| 246 247 | 0.4~1.0 | 80~50 | Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect. | ||||||
| 417 437 | 0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc. | ||||||
| 447 | |||||||||
| 517 527 | 0.35~1.0 | 140~60 | Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect. | ||||||
| 537 547 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect. | ||||||
| 617 627 | 0.45~1.1 | 90~50 | Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect. | ||||||
| 637 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect. | ||||||
Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., is specialized in manufacturing high quality rock bit since 20 years ago, especially for tricone bit, PDC bit, hole opener, single cone bit and drag bit. With advanced CNC machines and R&D team and on-time delivery. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
