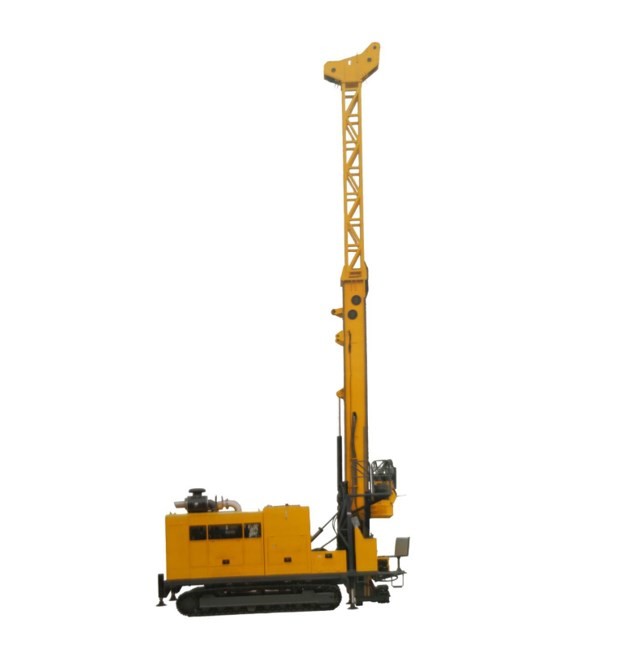

GLDX-8 Full Hydraulic Core Rig is a thoroughly new-type hydraulic core drilling developed with reference of GLDX-series Full Hydraulic Core Rig and feedback of clients.
It is suitable to be used in plains, hills, as well as severe atmosphere places and conditions such as high temperature and cold weather.
It is mainly used for metal & nonmetal solid mineral exploration and exploration of coal-bed methane, natural gas mining; hydrogeology well drilling, geothermal well drilling, mining gallery, ventilation and drainage of exploratory and emergency construction project.
It can also be mainly used in the field of geology, metallurgy, coal mine, nonferrous mining and oil, hydrological and engineering drilling.
It's one of the multifunctional and excellent performance core rig tby using diamond and carbide-tipped bits mainly and the same time it can meet the demand of wire-line coring and top drive, optional bracket device optional bracket device.
| Power Unit | Power | 276 kW (370HP) at 2100 r/min |
| Drilling Capacity | NQ | 3000m(9840 feet) |
| HQ | 2400 m(7872 feet) | |
| PQ | 1700 m(5576 feet) | |
| Drill Head | RPM of Spindle | Three Shifts/ Stepless ChangeThree 0-1250 RPM |
| Max. Torque of Spindle | 7200 Nm(5307 lbf·ft) at 170 rpm | |
| 1300 Nm(958 lbf·ft) at 1250 rpm | ||
| Spindle Diameter | 121 mm(4.76 inch) | |
| Max. Lifting capacity of Spindle | 295 kN(66316 lbf) | |
| Max. Feeding Power | 152 kN(34170 lbf) | |
| Capacity of Main Hoist | Hoisting force (single wire) | 120kN(26976 lbf) |
| Steel Wire Diameter | 22mm(0.86 inch) | |
| Steel Wire Length | 100 m(328feet) | |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 15 kN(3372 lbf) (bare drum) |
| Steel Wire Diameter | 6.3 mm(0.25 inch) | |
| Steel Wire Length | 2800 m(9184 feet) | |
| Mast | Effective Hoisting Height | 9.6 m(31.5 feet) |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle | 45º off horizontal to 90ºvertical down | |
| Feeding Stroke | 4700 mm(185 inch) | |
| Slippage Stroke | 1100 mm(43 inch) | |
| Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.19-4.63 inch) |
| through hole Ф154mm(6.06 inch) | ||
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW320 | |
| Stroke | 110mm(4.3 inch) | |
| Output volume | 320,230,165,118 L/min | |
| (84.5, 61, 44, 31 US Gallons/min) | ||
| Discharge pressure | 4.0, 5.0, 6.0, 8.0 Mpa | |
| (580, 725, 870, 1160 psi) | ||
| Others | Weight | 25000 Kg (55125 lb) |
| Transport Dimensions (L × W ×H ) | 8300×2400×3260mm | |
| (326.8×94.5×128.3 inch) |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
