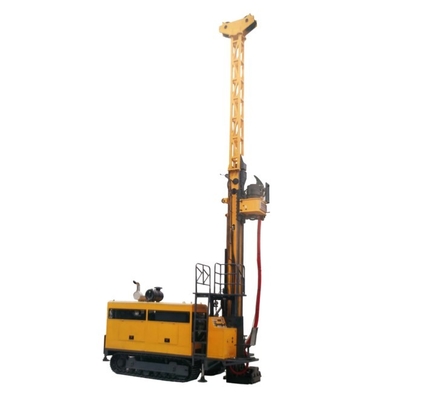

GLDX-6 Hydraulic Core Drilling Rig is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.
GLDX-6 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
The rig, equipped with tracks, has a hydraulic driving system.
It owns a brief but advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears.
With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable.
The mast is adjustable in the range from 0° to 90° to ensure a proper hole-drilling angle.
The low gravity center of the rig promises a steady operation.
And it provides the operators with a convenient and comfortable working circumstance with a wide view.
In short, the rig has a beautiful outline and shows a people-oriented design idea.
| Model | GLDX-6 / GLDX-6Plus | |
| Diesel Engine | Model |
Cummins 6CTA (turbocharged and charge water cooled) |
| Displacement | 8.3L (2.19 US Gallons) | |
| Power | 179kW (240HP) | |
| Rated RPM(Factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 2000 m(6560 feet) |
| NQ | 1600 m(5248 feet) | |
| HQ | 1300 m(4264 feet) | |
| PQ | 1000 m(3280 feet) | |
| Drill Head | Rotation Motor | Double Hydraulic Motor |
| -variable and Reversible | ||
| Maker: SAUER-DANFOSS | ||
| RPM | Two Shifts/ Stepless Change 0-1100 RPM | |
| Ratios | 1st 8.776:1 | |
| 2nd 2.716:1 | ||
| Head Opener | sidewise sliding way with hydraulic drive | |
| Max. Torque | 6400 N·m(4717 lbf·ft) | |
| Hold Diameter | 121 mm(4.76 inch) | |
| Max. Lifting capacity of Spindle | 220 kN(49456 lbf) | |
| Max. Feeding Power | 110 kN(24728 lbf) | |
| Primary Pump | Hydraulic pump: | Maker: DANFOSS |
| Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. | 1st Pump:200LPM at 32MPa | |
| With load sensing system. | 2nd Pump:120LPM at 28MPa | |
| 3rd Pump:120 LPM at 28MPa | ||
| Hydraulic Tank | Capacity | 420 L (111 US Gallons) |
| Capacity of Main Hoist | Hoisting Speed (single wire) | 44m/min(bare drum) |
| Hoisting force (single wire) | 120kN(26976 lbf) | |
| Steel Wire Diameter | 22 mm(0.86 inch) | |
| Steel Wire Length | 60 m(196.85 feet) | |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 15 kN(3372 lbf) (bare drum) |
| Steel Wire Diameter | 6 mm(0.24 inch) | |
| Steel Wire Length | 2000 m(6560 feet) | |
| Mast | Mast Height | 11.2 m(37.74 feet) |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle | 45º off horizontal to 90ºvertical down | |
| Feeding Stroke | 3800 mm(150 inch) | |
| Slippage Stroke | 1100 mm(43.3 inch) | |
| Feed Pull | 22000kg(48510 lb) | |
| Feed Thrust | 11000kg(24255 lb) | |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW320 | |
| Stroke | 110mm(4.3 inch) | |
| Output volume | 320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min) | |
| Discharge pressure | 4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi) | |
| Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.18-4.63 inch) |
| through hole Ф154mm(6.06 inch) | ||
| Others | Weight | 14000 Kg(30864 lb) |
| Transport Dimensions (L × W ×H ) | 6250×2240×2750mm | |
| (20.5×7.34×9.02 ft) | ||
| Transport Way | Steel Crawler | |
