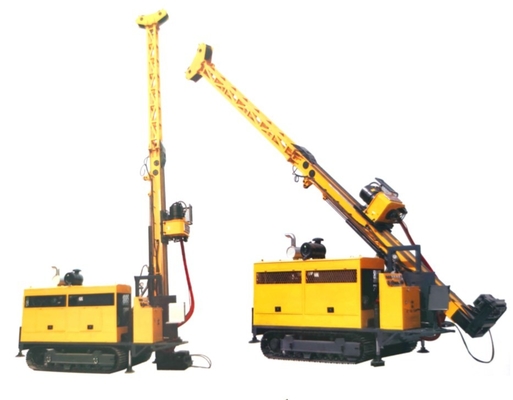

GLDX-5A(5C) Full Hydraulic Core Sample Geotechnical Sampling Exploration Drilling Rigs
The GLDX-5A(5C) new model Full Hydraulic Core Drill Rig is developed with reference of advanced technique of same kind equipment at home and abroad. The drill rig has a reasonable design and superior performance. It is easy to operate and for maintenance.
The drill rig adopts full hydraulic driving, travelling with tyre-drawing(with turning device) or crawlers itself(optional).
The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure.
The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain.
The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance.
The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit.
The rig provides operator with a nice field of vision and wide and comfortable working condition.
The rig looks pretty in overall structure and embodies the design thought of people oriented.
| Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) |
| Displacement | 8.3L (2.19 US Gallons) | |
| Power | 145kW (195HP) | |
| Rated RPM(Factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 1500 m(4920 feet) |
| NQ | 1300 m(4264 feet) | |
| HQ | 1000 m(3280 feet) | |
| PQ | 680 m(2230 feet) | |
| Drill Head | Rotation Motor | Double Hydraulic Motors –variable and Reversible |
| Maker:SAUER-DANFOSS | ||
| RPM | Two Shifts/ Stepless Change 0-1145 RPM | |
| Ratios | 1st 8.776:1 | |
| 2nd 2.716:1 | ||
| Head Opener | sidewise sliding way with hydraulic drive | |
| Max. Torque | 4650 N·m(3427 lbf·ft) | |
| Hold Diameter | 121 mm(4.76 inch) | |
| Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
| Max. Feeding Power | 75 kN(16860 lbf) | |
| Primary Pump Package | Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. | Maker: DANFOSS |
| 1st Pump:150LPM at 31.5MPa | ||
| 2nd Pump:120LPM at 28MPa | ||
| 3rd Pump:120 LPM at 28MPa | ||
| Hydraulic Tank | Capacity | 420 L (111 US Gallons) |
| Capacity of Main Hoist | Hoisting Speed (single wire) | 44m/min(bare drum) |
| Hoisting force (single wire) | 77kN(17310 lbf) | |
| Steel Wire Diameter | 18 mm(0.71 inch) | |
| Steel Wire Length | 60 m(196.85 feet) | |
| Capacity of Wireline Hoist | Hoisting Speed (single wire) | 100m/min (bare drum) |
| Hoisting Force (single wire) | 12 kN(2698 lbf) (bare drum) | |
| Steel Wire Diameter | 6 mm(0.24 inch) | |
| Steel Wire Length | 1500 m(4920 feet) | |
| Mast | Mast Height | 11.2 m(37.74 feet) |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle | 45°—90° | |
| Feeding Stroke | 3800 mm(150 inch) | |
| Slippage Stroke | 1100 mm(43.3 inch) | |
| Feed Pull | 15000kg(33075 lb) | |
| Feed Thrust | 7500kg(16538 lb) | |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW250 | |
| Stroke | 100mm(3.9 inch) | |
| Output volume | 250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min) | |
| Discharge pressure | 2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 psi) | |
| Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.18-4.63 inch) |
| through hole Ф154mm(6.06 inch) | ||
| Steel Crawler Type | Weight | 13000 Kg |
| Dimensions (L × W ×H ) | 6250×2240×2750mm((20.5×7.34×9.02 ft)) | |
| Tyre-drawing Type | Weight | 10000 Kg |
| Dimensions (L × W ×H ) | 6250×2200×2730mm(20.5×7.22×8.96 ft)) |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
