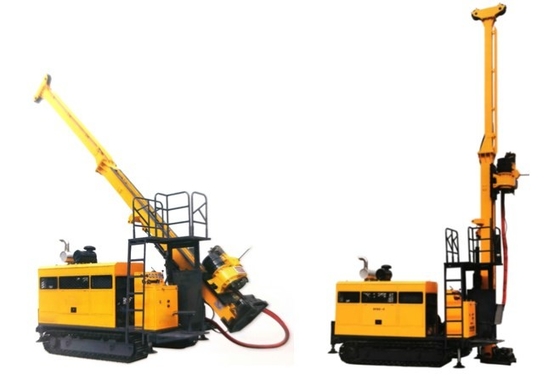

GLDX-4 Exploration Drilling Rigs Mineral Exploration Investigation Drill Rig For Core Gold Sample
The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China. Under these circumstances, Glorytek Drill has developed the GLDX-4 core drill rig successfully according to the situation of China. This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.
The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.
The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.
| Diesel Engine | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) |
| Displacement | 5.9L (1.56 US Gallons) | |
| Power | 132Kw (180HP) | |
| Rated RPM(Factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 1000m(3280feet) |
| NQ | 700m(2296 feet) | |
| HQ | 500m(1640 feet) | |
| PQ | 300m(984 feet) | |
| Drill Head | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
| Max. Torque | 4200 N·m(3108lbf·ft) | |
| Hold Diameter | 98mm(3.85 inch) | |
| Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
| Max. Feeding Power | 60 kN(13480 lbf) | |
| Primary Pump |
Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system. |
1st Pump:140LPM at 30MPa |
| 2nd Pump:120LPM at 25MPa | ||
| 3rd Pump:50 LPM at 20MPa | ||
| Hydraulic Tank | Capacity | 310 L (82 US Gallons) |
| Capacity of Main Hoist | Hoisting force (single wire) | 57kN(12814 lbf) (bare drum) |
| Hoisting Speed (single wire) | 38-40m/min (bare drum) | |
| Steel Wire Diameter | 16 mm(0.62 inch) | |
| Steel Wire Length | 50 m(164 feet) | |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 1200 Kg(2646 lb) (bare drum) |
| Hoisting Speed (single wire) | 130-400m/min (bare drum) | |
| Steel Wire Diameter | 6 mm(0.23 inch) | |
| Steel Wire Length | 1000 m(3280 feet) | |
| Mast | Mast Height | 9 m(29.52 feet) |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle | 45º off horizontal to 90ºvertical down | |
| Feed Pull | 15000kg(33075 lb) | |
| Feed Thrust | 6000kg(13230 lb) | |
| Rod Pull | 3m or 6m(9.84feet or 19.68feet) | |
| Feeding Stroke | 3500 mm(11.48ft) | |
| Slippage Stroke | 1100 mm(3.6ft) | |
| Mud Pump | Type | Reciprocating pump Triplex Plunger |
| Model | BW160/10 | |
| Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch) |
| through hole Ф154mm(6.06 inch) | ||
| Others | Weight (platform type) | 9300 Kg(20506 lb) |
| Dimensions (L×W×H) | 5100×2200×2450mm | |
| (16.73×7.21×8.03ft) | ||
| Transport Way | Crawler |
