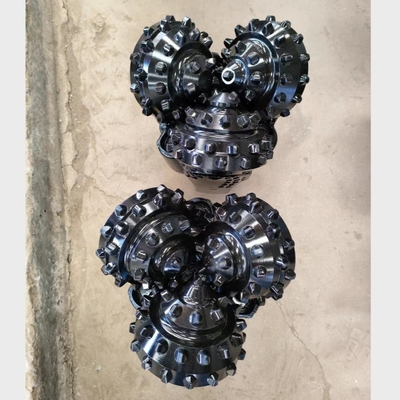

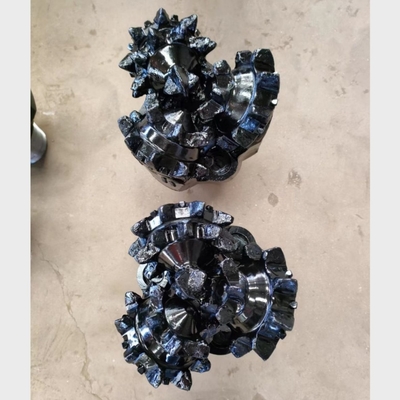

IADC117 IADC217 IADC537 98mm 3 7/8" Tricone Rock Bit for Soft and Hard Formation Borehole Drilling
1. Sizes ranging from 3 7/8" to 26".
2. Covers almost all IADC codes .
3. Tungsten carbide insert cutter of high strength and toughness is used to increase the impact resistance of cutters and decrease the breakage rate.
4. The features of TCI bits lead to its drilling formation almost are hard rocks, like limestone, dolomite, chert, firm sandstone, firm anhydrite, etc.
5. Widely used in oil exploration, mining prospecting, water well drilling ,subterranean heat, hydrology, etc.
6. The bits can be producted according to your special order.
7. Our products have reliable quality and competitive price
8. Products new and used are well-found.
| Regular Models of Tricone Bits | ||
| Regular Sizes | API Reg Pin | Make-up Torque(N.m) |
| 3 7/8"(98.4mm) | 2 3/8 | 4100~4700 |
| 4 5/8"(117.4mm) | 2 7/8 | 6100~7500 |
| 5 1/2"(139.7mm) | 3 1/2 | 9500~12200 |
| 5 5/8"(142.8mm) | 3 1/2 | 9500~12200 |
| 5 7/8"(149.2mm) | 3 1/2 | 9500~12200 |
| 6"(152.4mm) | 3 1/2 | 9500~12200 |
| 6 1/4"(158.7mm) | 3 1/2 | 9500~12200 |
| 6 1/2"(165mm) | 3 1/2 | 9500~12200 |
| 7 1/2"(190mm) | 4 1/2 | 16300~21700 |
| 7 5/8"(193mm) | 4 1/2 | 16300~21700 |
| 7 7/8"(200mm) | 4 1/2 | 16300~21700 |
| 8 1/2"(215.9mm) | 4 1/2 | 16300~21700 |
| 9 1/2"(241.3mm) | 6 5/8 | 38000~43400 |
| 9 7/8"(250.8mm) | 6 5/8 | 38000~43400 |
| 10 5/8(269.8mm) | 6 5/8 | 38000~43400 |
| 11 5/8(295.3mm) | 6 5/8 | 38000~43400 |
| 12 1/4"(311.1mm) | 6 5/8 | 38000~43400 |
| 13 5/8"(346.0mm) | 6 5/8 | 38000~43400 |
| 14 3/4"(374.6mm) | 7 5/8 | 46100~54200 |
| 17 1/2"(444.5mm) | 7 5/8 | 46100~54200 |
| 20''(508.0mm) | 7 5/8 | 46100~54200 |
| 22''(558.8mm) | 7 5/8 | 46100~54200 |
| 24''(609.6mm) | 7 5/8 | 46100~54200 |
| 26"(660.4mm) | 7 5/8 | 46100~54200 |
Packing: standard exporting packing.
Delivery: Normally 10 days after your advanced payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., is specialized in manufacturing high quality rock bit since 20 years ago, especially for tricone bit, PDC bit, hole opener, single cone bit and drag bit. With advanced CNC machines and R&D team and on-time delivery. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices.
We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.
