BQ NQ HQ Wireline Coring Portable Exploration Drilling Rigs for 300m 800m Drilling
Description:

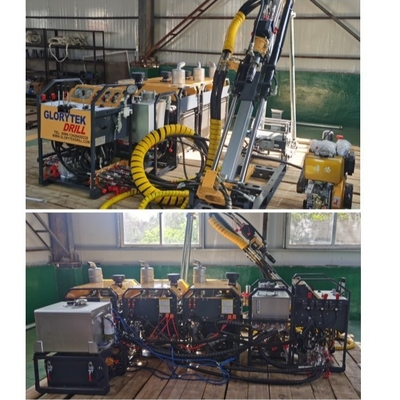

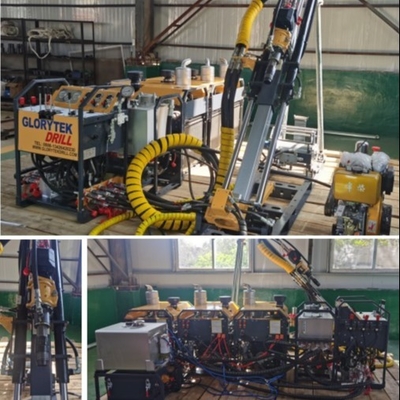

GL300E/GL500E/GL800E series are representative models of portable core drilling rigs, suitable for drilling shallow and medium-deep holes.
Features:
1. The portable drilling rig adopts the power system integrated control technology, and realizes the control of all engines on the console;
2. The clamp has a pressure loss protection function, which is safe, reliable, and responds quickly to prevent accidental detachment.
3. The unique adjustable sliding gap function of the power head keeps the close contact between the mast rail surface and the carriage, eliminates drilling vibration, and ensures drilling coaxiality.
4. It adopts a portable engine with high power reserve. By optimizing the system configuration, it can fully improve the adaptability to plateau work.
5. Combined masts, which can be automatically retracted, compact in structure, stable and reliable.
6. The proprietary portable drilling rig mud treatment system adopts customized high-pressure mud pump, which is light in weight, small in pulse and easy to operate.
7. Industry high-end manufacturing process, excellent quality.
Tehnical Parameter:
| Model | GL300E | GL500E | GL800E |
| Drilling Depth | |||
| B | 320m | 580m | 800m |
| N | 220m | 380m | 600m |
| H | 80m | 180m | 260m |
| Note: The drilling depth is based on the theoretical value, and the specific drilling depth capability is determined by the actual working conditions and process methods | |||
| Power System | |||
| Diesel Engine | V2410T X1 | V2410T X2 | V2410T X3 |
| Power | 41kw | 82Kw | 123Kw |
| Rotating Speed | 3000rmp | 3000rpm | 3000rpm |
| Electrical System | 12V | 12V | 12V |
| Hydraulic System | |||
| Main Pump | 17MPa | 21MPa | 21MPa |
| Auxiliary Pump | 15MPa | 17MPa | 17MPa |
| Hydraulic Oil Cooling | Air cooling/water cooling | Air cooling/water cooling | Air cooling/water cooling |
| Feeding System | |||
| Feeding Stroke | 1.8m | 1.8m | 1.8m |
| Feeding Force | 45kN | 55kN | 65kN |
| Lifting Force | 90kN | 110kN | 130kN |
| Drilling Angle | 45°-90° | 45°-90° | 45°-90° |
| Lifting Speed | 114m/min | 114m/min | 114m/min |
| Drill Pipe Length | 1.5m | 1.5m | 1.5m |
| Rotary Head | |||
| Power | Hydraulic Motor | Hydraulic Motor | Hydraulic Motor |
| Drive | Spindle Drive | Spindle Drive | Spindle Drive |
| Suitable Drill Pipe(max) | 114mm | 114mm | 114mm |
| Max. Rotating Speed | 1200rpm | 1200rpm | 1200rpm |
| Max. Torque | 580Nm | 680Nm | 680Nm |
| Wireline Winch | |||
| Wire Rope Capacity | 500m | 800m | 800m |
| Lifting Tension | Empty Rope Drum: 10.4kN | Empty Rope Drum: 11.9kN | Empty Rope Drum: 11.9kN |
| Full Rope Drum: 4kN | Full Rope Drum: 5kN | Full Rope Drum: 5kN | |
| Lifting Speed | 90m/min | 114m/min | 114m/min |
| Drill Pipe Clamp | |||
| Max. I.D | 114mm | 114mm | 114mm |
| Clamping Capacity | 13000kg | 13000kg | 13000kg |
| Suitable Drill Pipe(O.D) | 54mm-114mm | 54mm-114mm | 54mm-114mm |
| Core Diameter(O.D) | 36mm-85mm | 36mm-85mm | 36mm-85mm |
| Mud Pump Unit( Optional) | |||
| Mud Pump | Plunger High-Pressure Pump | Plunger High-Pressure Pump | Plunger High-Pressure Pump |
| Drive Type | Independent Drive | Independent Drive | Independent Drive |
| Flow And Pressure | 100Lpm, 20bar | 120Lpm, 40bar | 120Lpm, 40bar |
| Water Supply Unit(Optional) | |||
| Water Supply Pump | Plunger High-Pressure Pump | Plunger High-Pressure Pump | Plunger High-Pressure Pump |
| Drive Form | Diesel Engine(7.3KW) | Diesel Engine(7.3KW) | Diesel Engine(7.3KW) |
| Flow And Pressure | 100Lpm, 70bar | 100Lpm, 70bar | 100Lpm, 70bar |
| Drill Rig Weight | |||
| Power Unit | 180kg *1 | 180kg *2 | 180kg *3 |
| Operation Unit | 120kg | 120kg | 120kg |
| Oil Tank Unit(Full Load) | 120kg | 130kg | 130kg |
| Mud Pump Unit( Optional) | 50kg | 50kg | 50kg |
| Working Weight( about) | 1040kg | 1200kg | 1200kg |
| Max. Disassemble Part QTY | 10 | 12 | 12 |
Company Profile
We have over 20 years of experience in supplying different types of core drilling rigs. For projects with different depths and different hole diameters, we can provide a variety of suitable core drilling rigs. We can provide skid type, crawler type and trailer type drilling rigs to meet the different needs of different customers. Welcome to inquiry.
After-sale Warranty
Warranty of Core Drill Rig:
(1)Within the period of the first year after delivery, the main parts of Core Drill Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
