300m Portable Soil Test Diamond Core Gold Mine Exploration Drilling Rigs

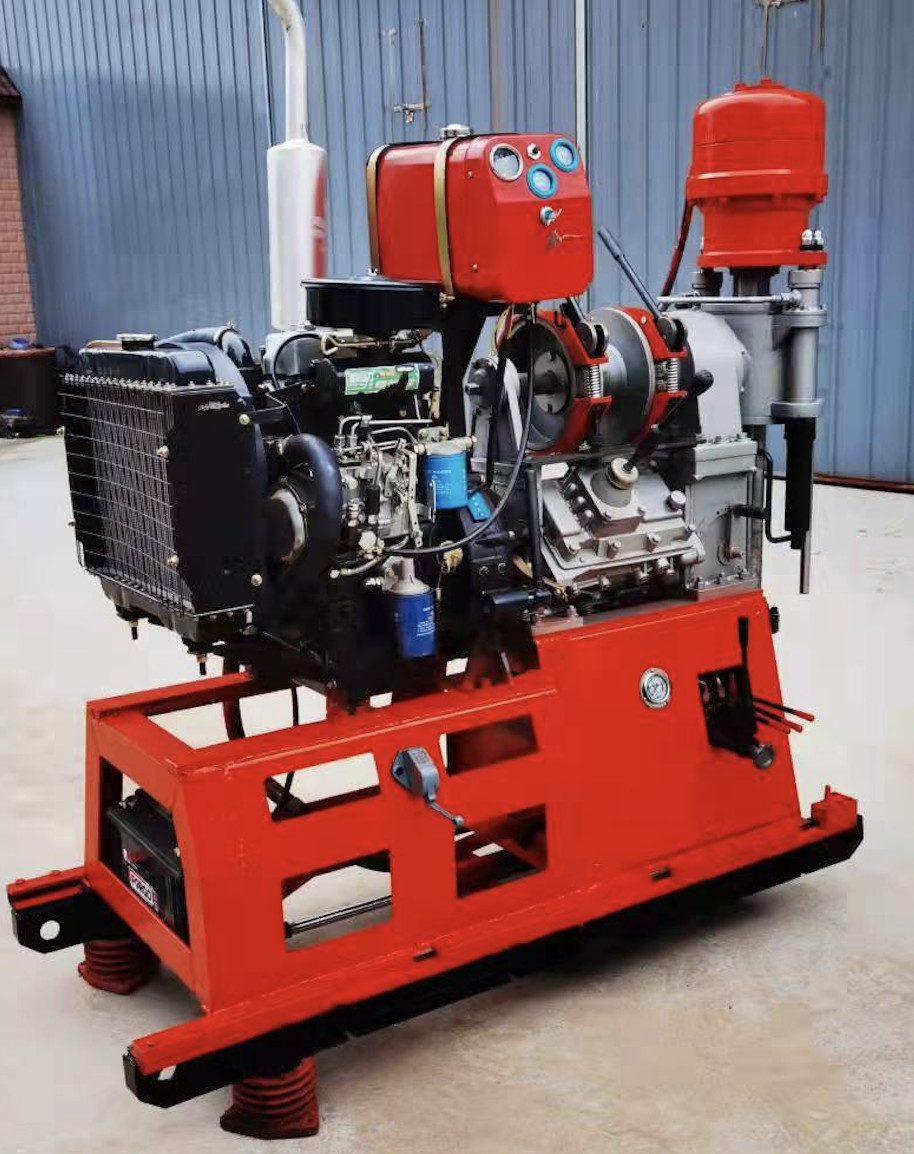

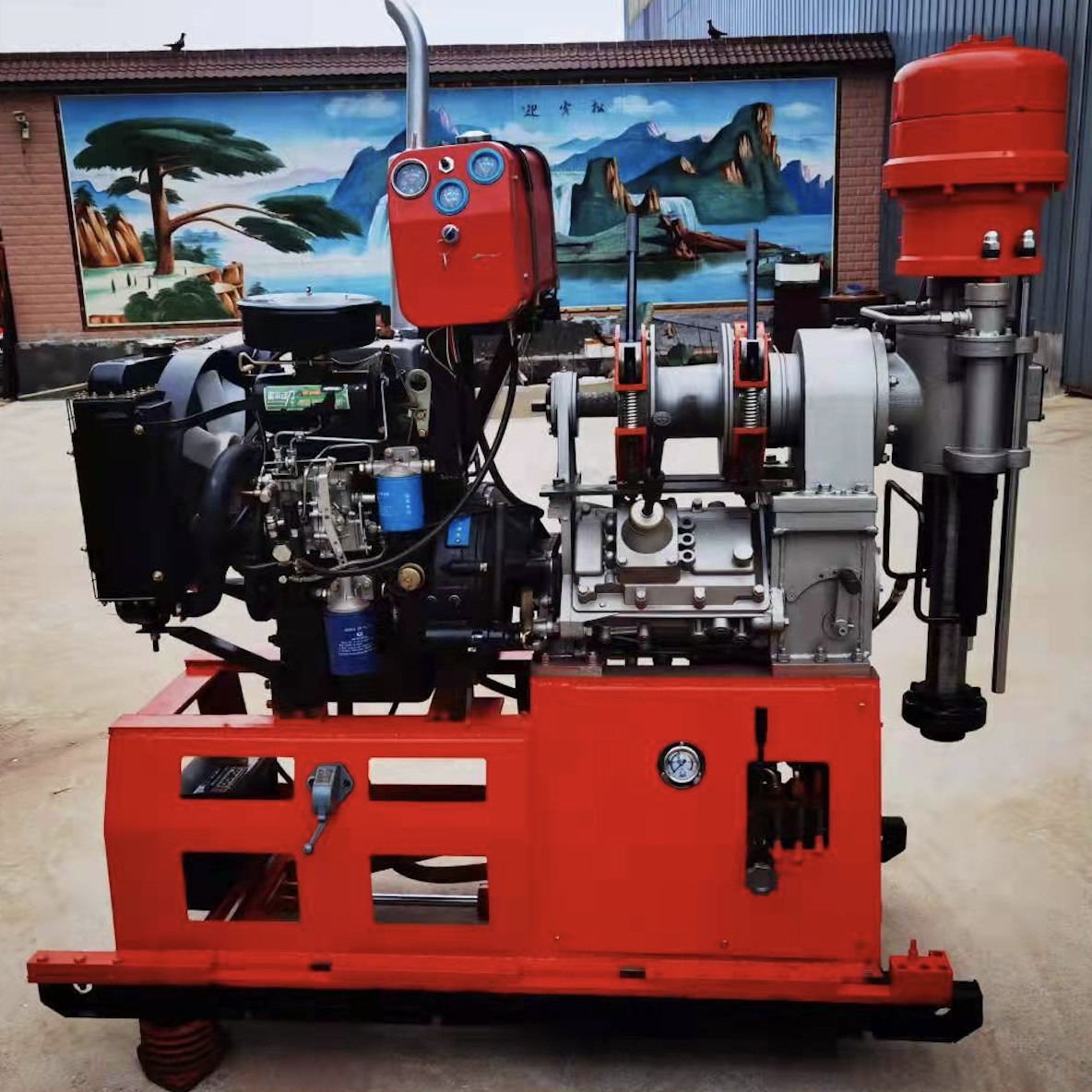

GL300Y core drill rig is a a portable drill rig with large drive rod, large stroke and oil pressure feeding.
The drilling rig is applicable to general survey, geophysical exploration, road and building exploration, blasting hole drilling and other drilling projects. Inspection holes for various concrete structures.
Diamond, alloy, steel sand and steel grain bits can be selected for drilling according to different formations.
It can drill 2-9 grade sandy clay and bedrock.
When the final hole diameter is 75mm, the rated drilling depth is 300M, the rated opening diameter is 110mm, and the allowable diameter of large opening is 150mm.
| Technical parameters of GL300Y Core Drilling Rig | |
| Drilling depth | 300m |
| Hole diameter | 73-325mm |
| Drilling rod diameter | φ42mm, φ50mm |
| Angle range | 0-360° |
| Spindle speed | forward 126/236/433/650/1040 r/min |
| Reverse 126 r/min | |
| Max. torque | 4800 N.m |
| Spindle stroke | 400mm |
| Feeding capacity | 29KN |
| Lifting capacity | 39KN |
| Oil pump model | CBT-F320 |
| Oil pump pressure | 20MPa |
| Oil pump displacement | 20ml/r |
| Drum diameter | 135mm |
| Wire rope diameter | 12mm |
| Wire rope capacity | 30m |
| Chuck mode | Hydraulic chuck |
| Diesel engine | Huichai double cylinder diesel engine |
| Rated power | 38HP(28KW) |
| Rated speed | 2600r/min |
| Dimensions(L×W×H) | 1820×980×1935mm |
| Weight | 1100kgs |
1. It has an automatic oil pressure feed mechanism to improve drilling efficiency and reduce manual labor of workers.
2. It has hydraulic chuck, the operation is convenient, safe and reliable.
3. The handle is centralized and easy to operate.
4. Compact structure, strong decomposition, easy to move. Suitable for plain or mountain work.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
