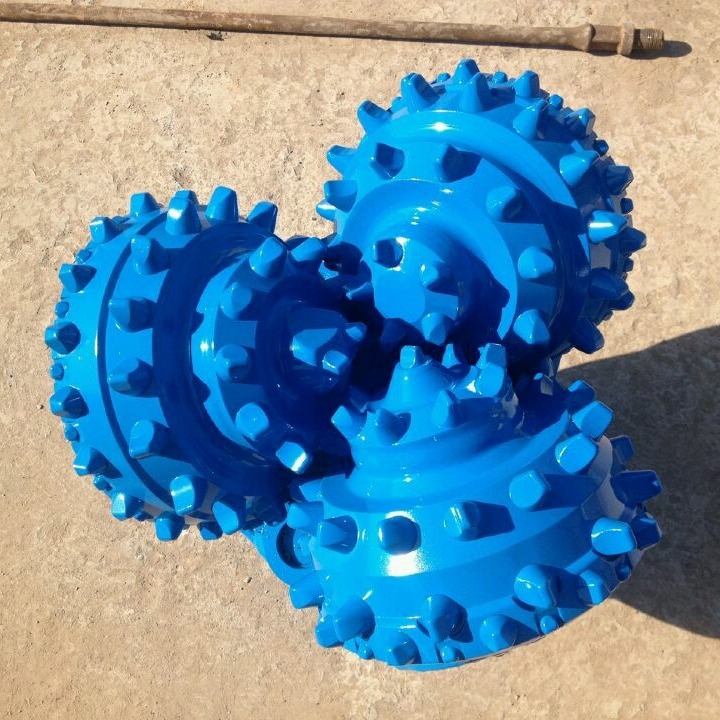

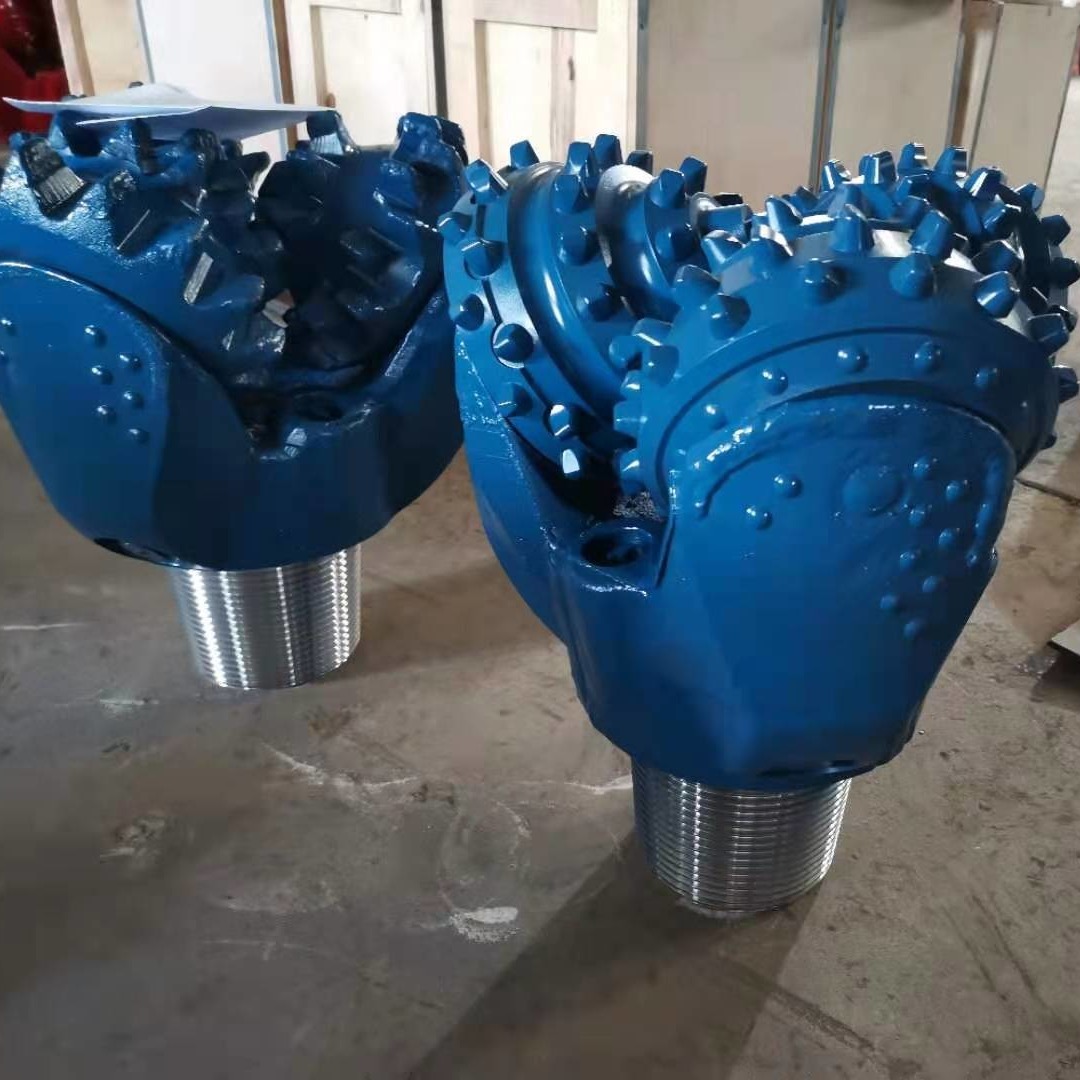

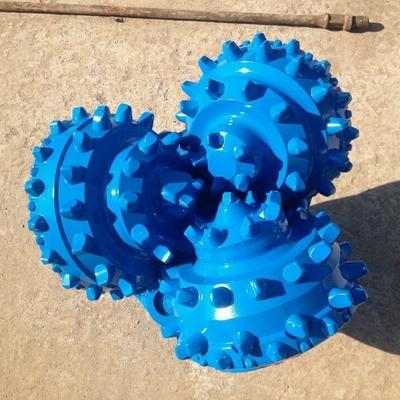

IADC537 TCI Roller Rock Drill Tricone Rock Bit for Water Well Drilling/HDD/Oilfield
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in
Domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
Rubber sealed sliding bearing bits are sealed by special type "O". Under the normal rotary speed conditions, they can stand high bit pressure. The bore surface of the cone has been treated with special techniaue in order to improve sliding motion of the bearing. And every performance is improved greatly.
1 O-shape seal ring with high saturation butadience acrylonitrile rubber improved the bearing sealed reliability.
2 To adapt high strength and toughness hard alloy teeth, the shock resistance has been increased and the breakage rate has been decreased.
3 The bearing contact surface, neck journal of jaw have been adapted to wear resistance alloy materials, the special craft processing has been applied in the bore surface of the cone which increases the load capability and the working life.
4 Optimized tooth number of cone and height of tungsten carbide tooth which improved the total cutting property and drilling footage.
5 High-performance lubricant grease has been applied in bearing which increased lubricating and protecting.
| IADC | Rock formation | WOB (KN/mm) | PRM(r/min) |
| 417/427/437 | Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc | 0.35~0.90 | 140~70 |
| 447 | Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc. | 0.35~1.00 | 140~60 |
| 517 | Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc | 0.35~1.05 | 120~50 |
| 527 | Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc. | 0.35~1.05 | 120~50 |
| 537/547 | Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc. | 0.50~1.05 | 110~40 |
| 617/627 | High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc. | 0.50~1.05 | 80~40 |
| 637/737 | High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc. | 0.7~1.20 | 70~40 |
Packing: standard exporting packing.
Delivery: Normally 10 days after your advanced payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., is specialized in manufacturing high quality rock bit since 20 years ago, especially for tricone bit, PDC bit, hole opener, single cone bit and drag bit. With advanced CNC machines and R&D team and on-time delivery. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices.
We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.
