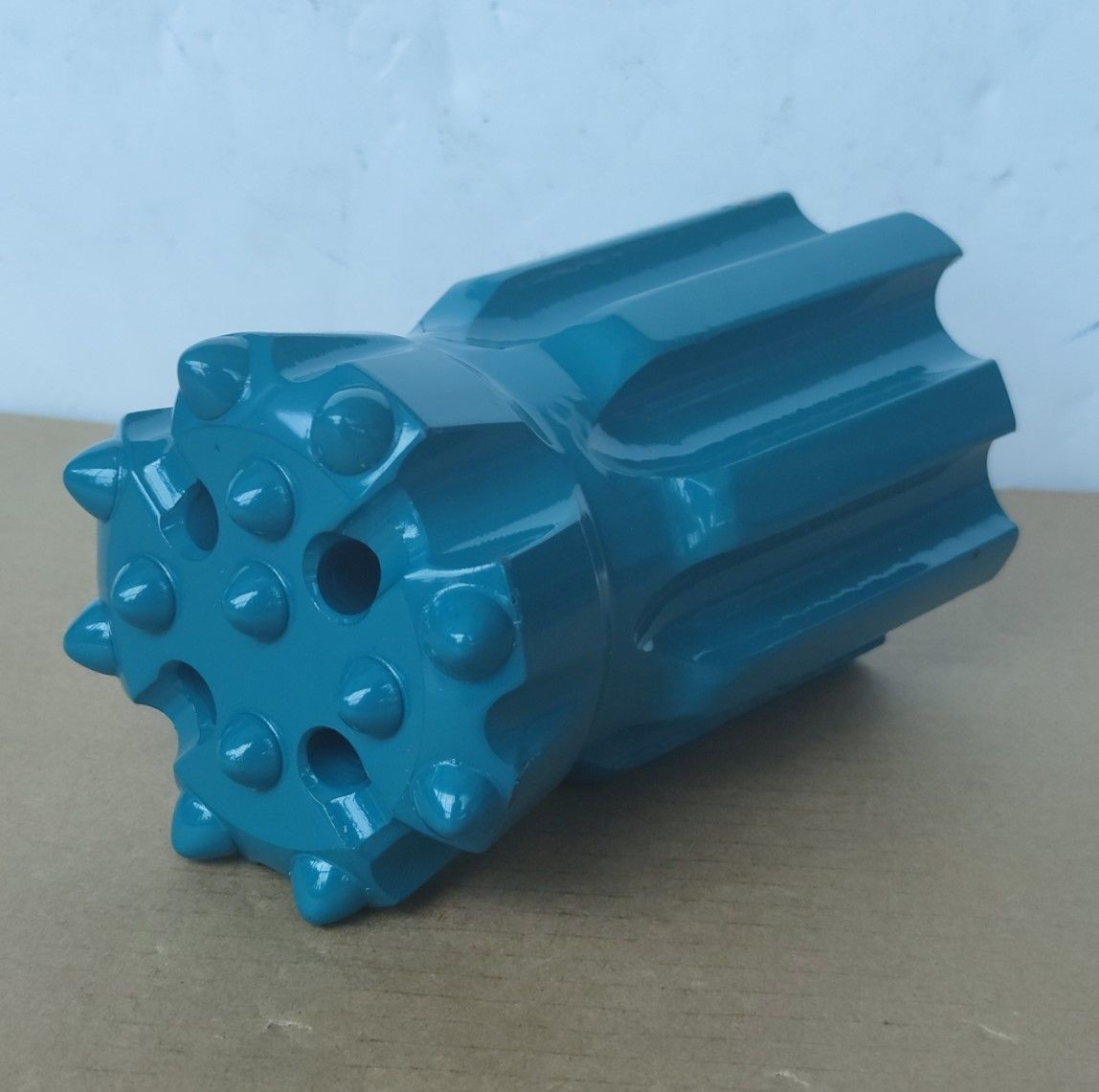

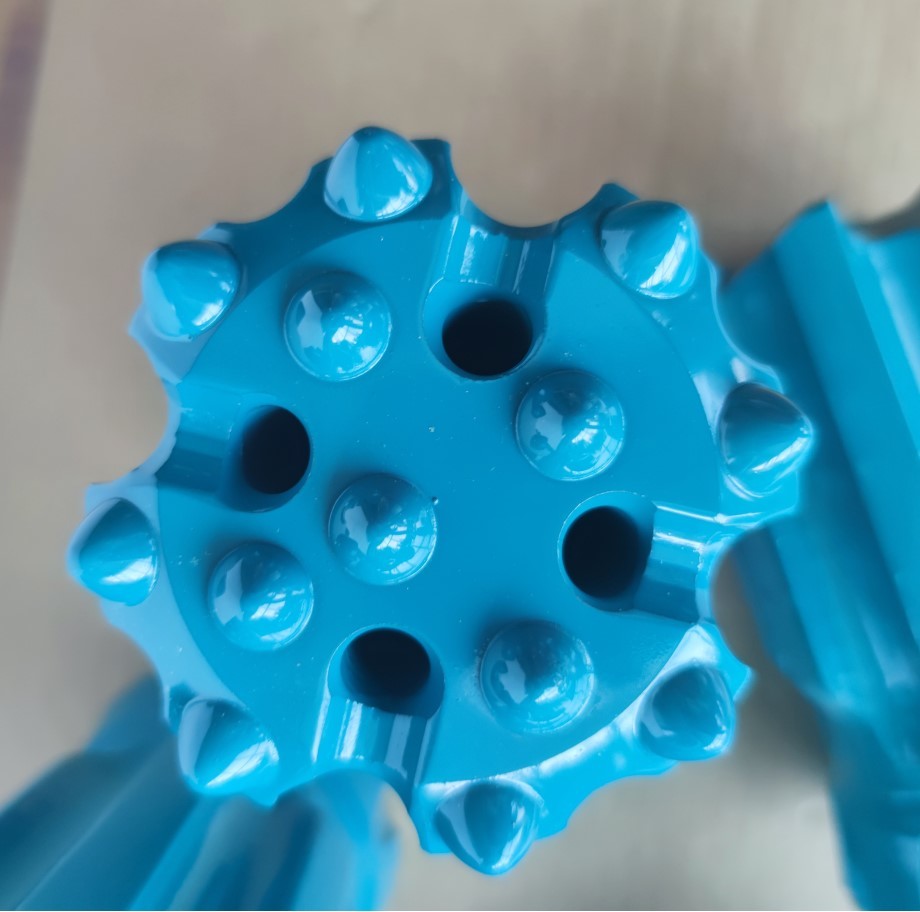

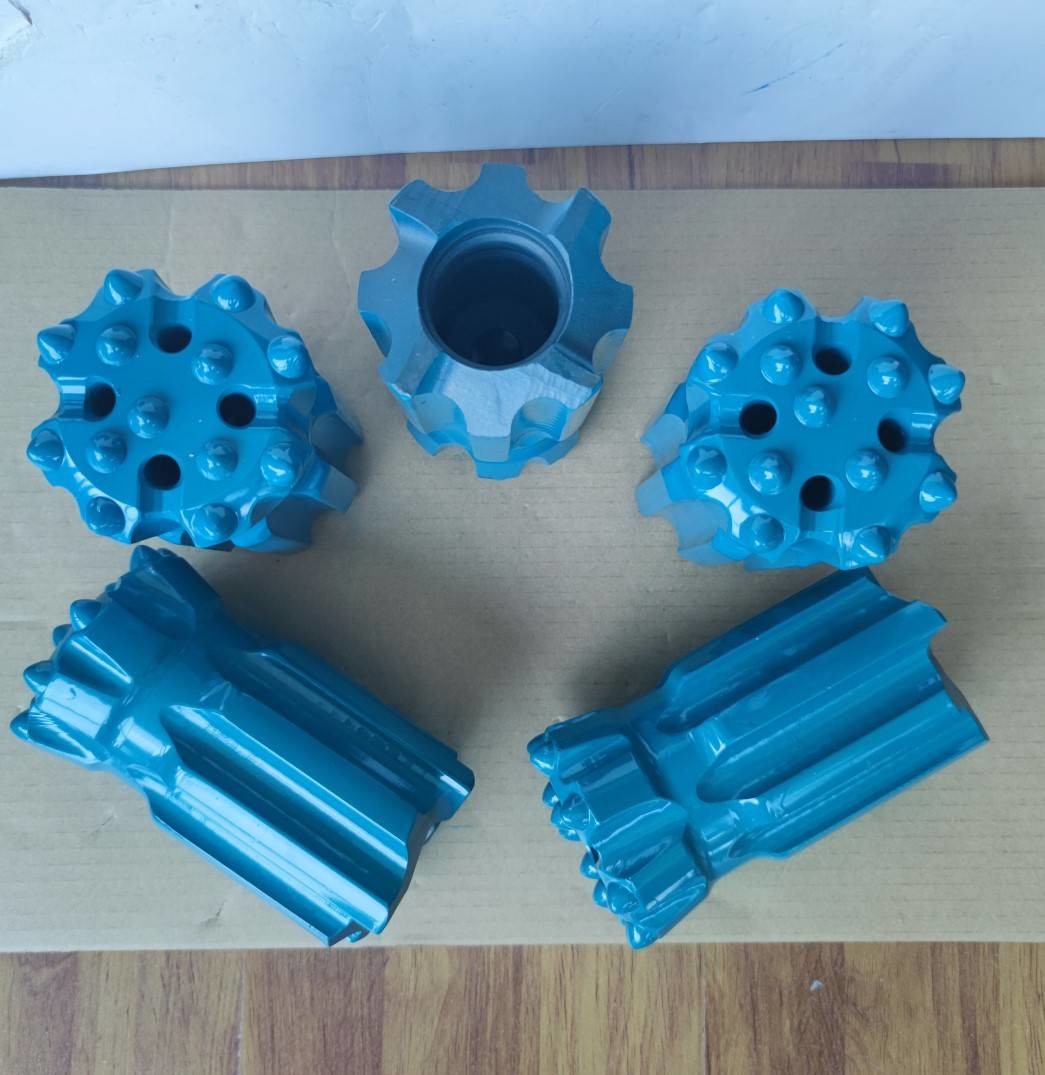

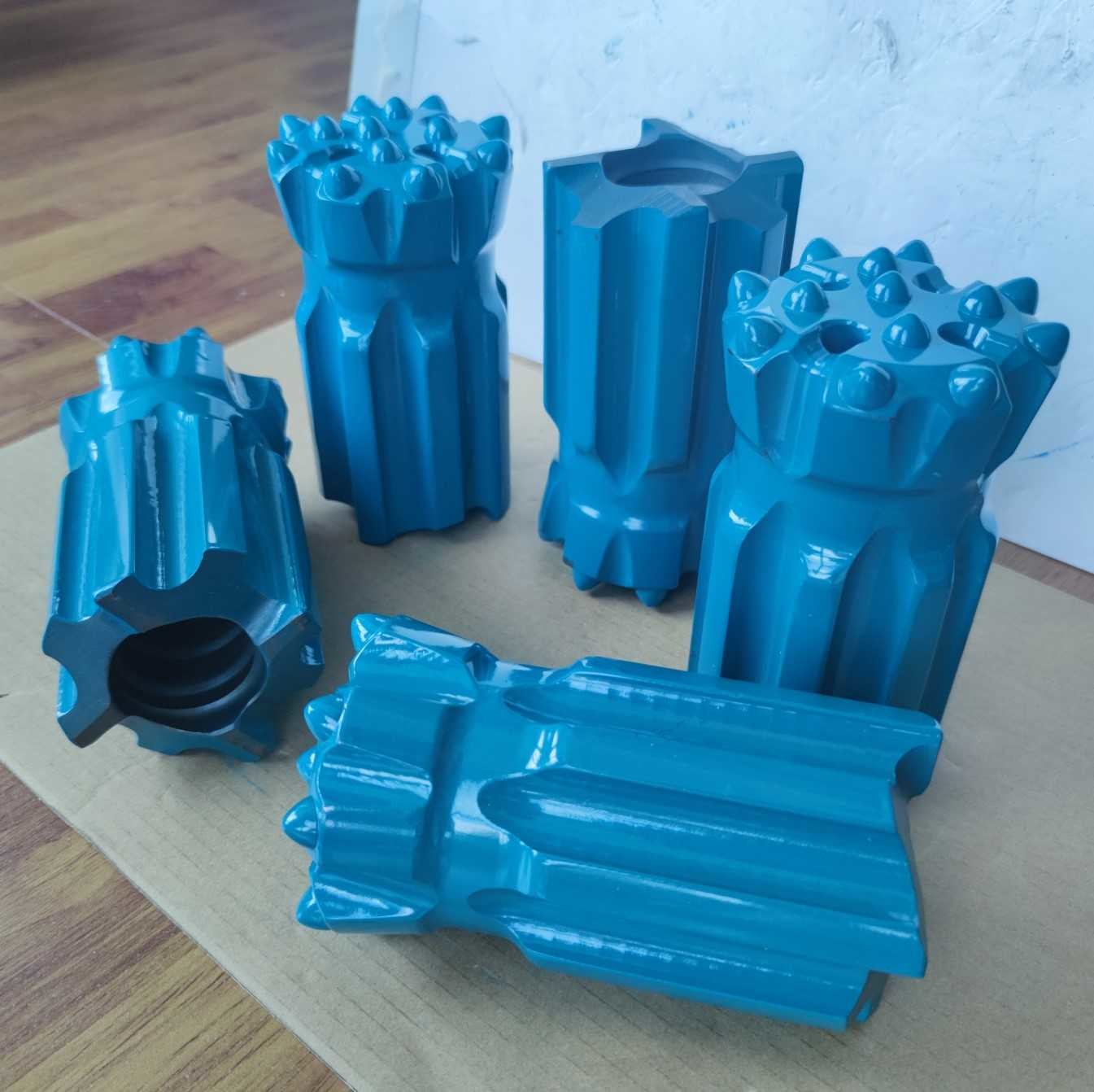

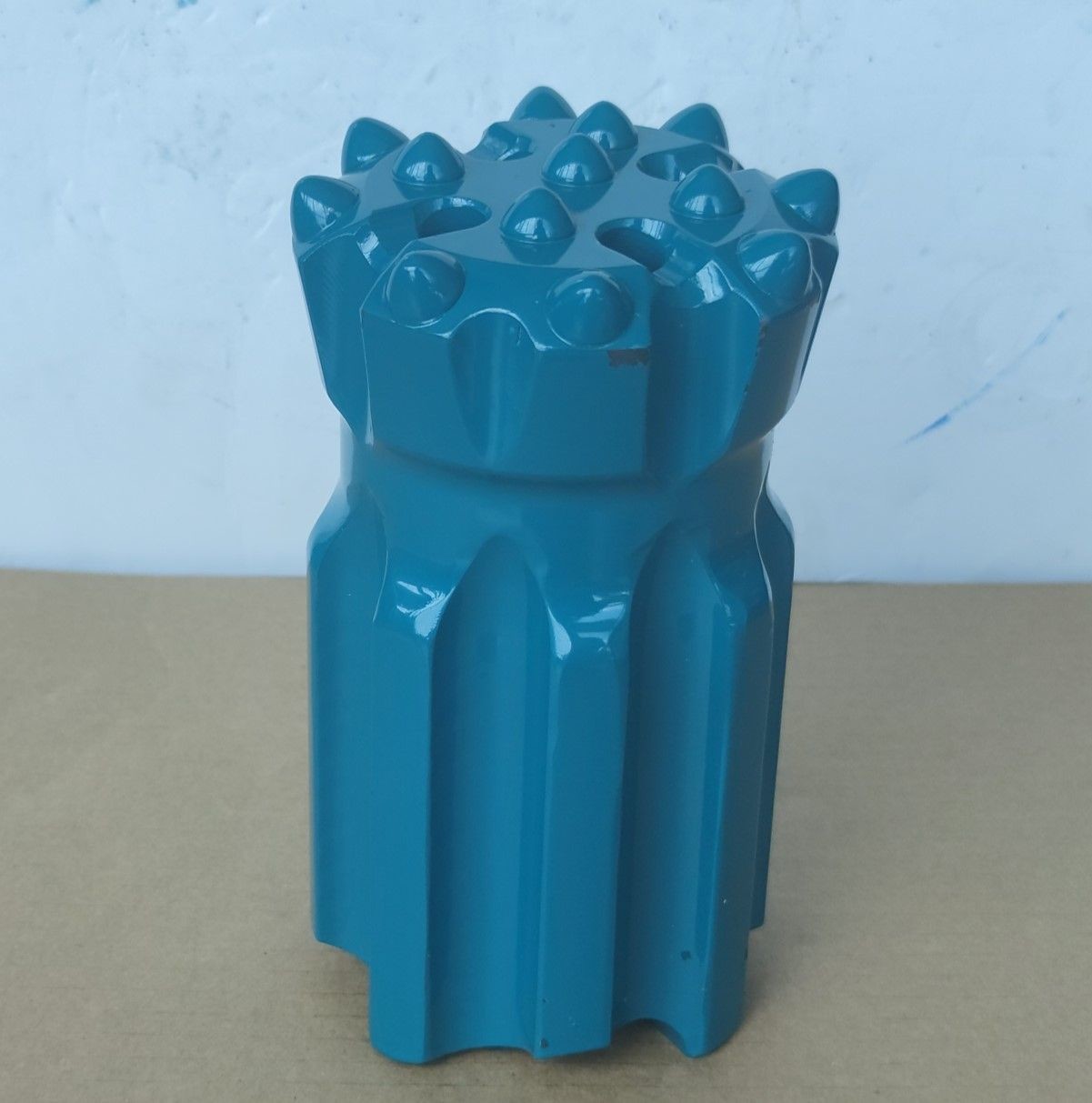

Top Hammer Tools T51 T45 T38 Retrac Button Bit Drilling Rig Tools For Mining
Description:
Product Description
1) Bit body: Normal type and retrac type
2) R thread: R22 R25 R28 R32 R38
3) T thread: T38 T45 T51 ST58 GT60
4) Bit diameter: 32mm-127mm
5) Bit face shape: Flat face and drop centre
6) Tungsten carbide (Buttons): Spherical, ballistic and conical.
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
(1)Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60
(2)Diameter: 38-127mm.
Tehnical Parameter:
| Name | Top Hammer Tools T51 T45 T38 Retrac Button Bit Drilling Rig Tools For Mining |
| Keyword | Retrac Button Bit Drilling Rig Tools |
| Diameter of bits | 38-127mm |
| Thread | R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 |
| Color | white, yellow or as per customers' requirements |
| MOQ | 50pcs |
Features:
OEM and ODM--- We can design and manufacture according to customers's samples or drawings of the Bit Dia., No. Of air/water holes, carbide button shape and the face shape.
Super Quality--- Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Global Reputation--- The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
Packing and Transport
Packing: standard exporting packing
Delivery: Normally 15-20 days after your down payment. Shipping by sea, air or express are all available.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Before Official Order, please confirm below informations:
(1) Thread Type
(2) Standard or Retrac
(3) Bit button shape (tip shape)--Spherical or Ballistic
(4) Bit face shape--Drop Center, Flat Face, Convex, Concave, etc.
After-sale Warranty
(1) If the problem caused by the quality issue, we will replace it freely.
(2) We provide timely after-sale assistance.
