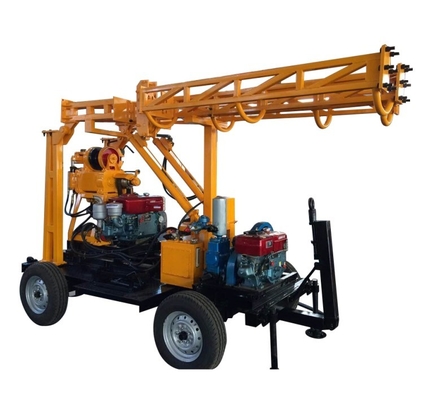

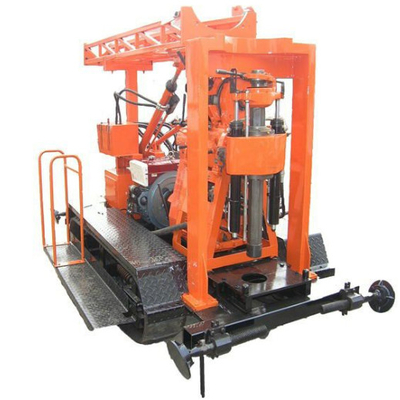

XY-1/XY-1A/GL200/GL250/GL300 Small Size Light Weight Shallow Coring Exploration Drilling Rigs
ABOUT XY-series DRILL RIG:
XY-1/XY-1A/GL200/GL250/GL300 drilling rig are widely used for prospecting and exploration, mineral exploration and SPT service,borehole drilling projects.
They are compact in structure, small in size, light in weight and convenient in transportation.
XY-1/XY-1A/GL200/GL250/GL300 drilling rig has have the advantages of compact structure, low price and easy operation. Welcome contact to know more about these core drill rigs.
Tehnical Parameter:
| Models | XY-1 | XY-1A | GL200 | GL250 | GL300 | ||
| Drill | Drilling depth | 100m | 100/180 m | 250m | 250m | 300m | |
| Initial hole dia | 110mm | 150mm | 200mm | 200mm | 200mm | ||
| Final hole dia | 75mm | 75mm | 75mm | 75mm | 75mm | ||
| Drill rod dia | 42mm | 43mm | 50mm | 50mm | 50mm | ||
| Angle range | 75°-90° | 75°-90° | 75°-90° | 75°-90° | 75°-90° | ||
| Dimensions(L×W×H) | 1640×1030×1440 (mm) | 1620×970×1560(mm) | 1700×1030×1270 (mm) | 1700X1030X1270(mm) | 1070×1030×1270 (mm) | ||
| Swivel Head | Spindle stroke | 450mm | 450mm | 450mm | 450mm | 450mm | |
| Spindle lifting capacity max | 25KN | 25KN | 30KN | 30 KN | max 45 KN | ||
| Hoist | Max .lifting capacity(single rope) | 10KN | 15KN | 20/40/90/180 | 20KN | 20KN | |
| Power | diesel engine | Model | S1100A2 | S1100A2 | L28N | L28N | L28N |
| Rated power | 10.3KW | 10.3KW | 16.2KW | 20KW | 20KW | ||
| Rated speed | 2000r/min | 2200r/min | 2200r/min | 2000r/min | 2000r/min | ||
| motor | Model | Y132M-4 | Y160M‐4 | Y160L-4 | Y160L-4 | Y160L-4 | |
| Rated power | 7.5kW | 11KW | 11KW | 15KW | 15KW | ||
| Rated speed | 1440r/min | 1460r/min | 1460r/min | 1440r/min | 1440r/min | ||
