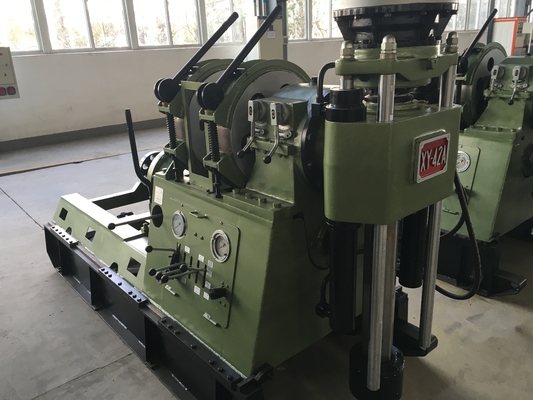

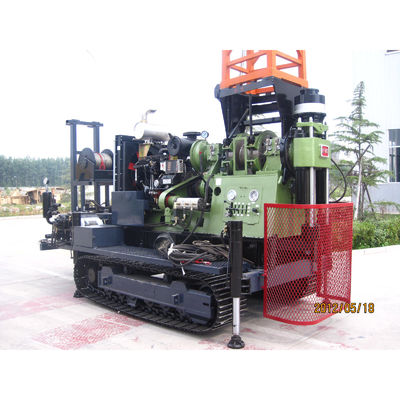

XY-series Deep Well Crawler Type Wireline Coring Exploration Drilling Rigs for Deep Rock Sampling
ABOUT XY-series DRILL RIG:
The models of XY-4TL/XY-42TL/XY-44TL/XY-5TL/XY-6TL/XY-6BTL crawler- type drill rigs are new types of rigs, which are developed on the basis of our decades of experience of manufacturing rigs to meet the needs of multiple drill techniques, mainly diamond bits drill. They can also be used in the fields of engineering geological and hydro-geological exploration, water well and large-diameter piling works.
Tehnical Parameter:
| Model | XY-4TL | XY-42TL | XY-44TL | XY-5TL | XY-6TL | XY-6BTL | |
| Drilling Depth | 700-1000m | 700-1100m | 700-1400m | 900-1800m | 1000-2100m | 1200-2400m | |
| Drill Angle | 45-90° | 45-90° | 45-90° | 90° | 90° | 90° | |
| Spindle Speed | Positive | 101,187,267, 388,311,574 819,1191rpm |
82,151,215, 313,251,463, 661,961rpm |
83,152,217, 316,254,468, 667,970rpm |
96,170,244, 284,357,471, 678,994rmp |
92,162,244, 284,357,471,678,994rpm |
96,178,253, 369,268,494, 705,1025rpm |
| Negative | 83,251rpm | 67,205rpm | 67,206rpm | 84,293rpm | 85,234rpm | 78,248rpm | |
| Max. Spindle Speed | 2640N.m | 3200N.m | 3200N.m | 5500N.m | 7800N.m | 7800N.m | |
| Spindle Feeding Stroke | 600mm | 600mm | 600mm | 600mm | 720mm | 720mm | |
| Spindle Hold Diameter | 68mm | 93mm | 93mm | 93mm | 93mm | 118mm | |
| Max.Lifting Capacity of Spindle | 80kN | 80kN | 120kN | 135kN | 200kN | 200kN | |
| Max. Pressuring Force of Spindle | 60kN | 60kN | 90kN | 100kN | 150kN | 150kN | |
| Steel Wire Diameter | 16mm | 16mm | 17,5mm | 18,5mm | 21,5mm | 21,5mm | |
| Winding Drum Capacity | 90m | 90m | 110m | 120m | 120m | 120m | |
| Max.Hoisting Force | 30kN | 30kN | 45kN | 60kN | 85kN | 85kN | |
| Drill-tower Height | 10m | 10m | 10m | 12m | 12m | 12m | |
| Power Unit(diesel engine) | 74KW/2200r/min | 82KW/2200r/min | 97KW/2200r/min | 132KW/2200r/min | 132KW/2200r/min | 132KW/2200r/min | |
| Mud Pump | 160L/min | 160L/min | 250L/min | 250L/min | 320L/min | 320L/min | |
| Mixer(optional) | Y2-16-0 | Y2-16-0 | Y2-16-0 | Y2-16-0 | Y2-16-0 | Y2-16-0 | |
| Auxiliary hoister | 12kN | 12kN | 12kN | 12kN | 15kN | 15kN | |
| Max.Load of Mast | 100kN | 100kN | 100kN | 200kN | 200kN | 200kN | |
| Moving Speed | 1,5km/h | 1,5km/h | 1,5km/h | 1,5km/h | 1,5km/h | 1,5km/h | |
| Climbing Capacity | 30° | 30° | 30° | 30° | 30° | 30° | |
| Dimensions | 4785*2220*10524mm | 4785*2220*10524mm | 4785*2220*10524mm | 6186*2220*12000mm | 6186*2220*12000mm | 6186*2220*12000mm | |
| Weight | 9,3t | 9,6t | 10t | 13,5t | 14t | 14,6t | |
