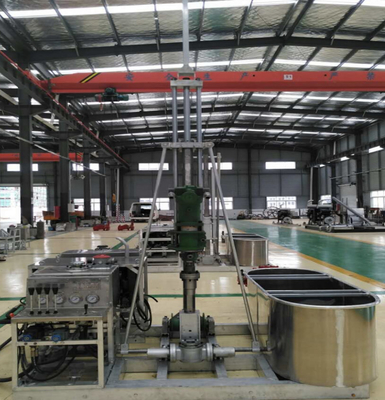

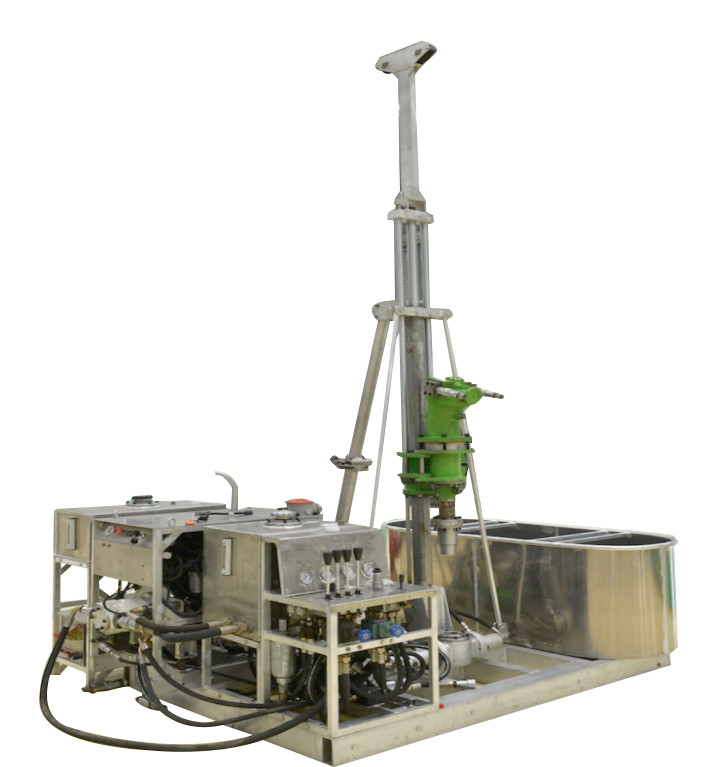

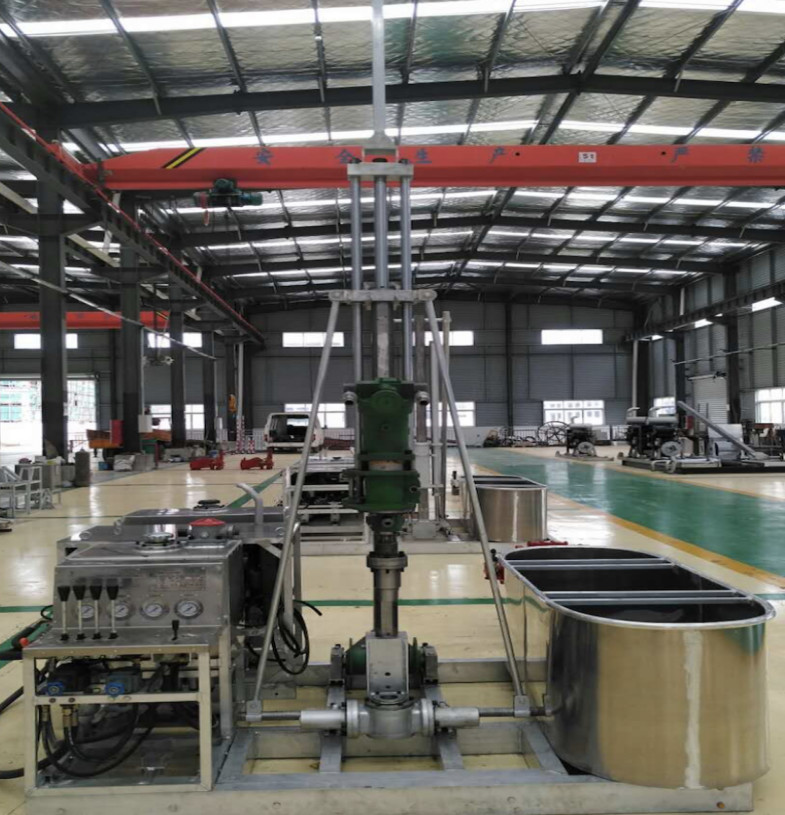

GL-1080 Detachable Portable Rock Sampling Exploration Drilling Rigs for Projects in Mountains
ABOUT GL-1080 DRILL RIG:
The drilling rig can be disassembled and lifted up the mountain by manual transportation. It uses Rexroth hydraulic system and Japanese Kubota diesel engine. It has the advantages of light weight and high power. All parts are of the highest-end brand, and the material is the lightest material.
This machine can use BTW, NTW, HTW, PTW, or BQ, NQ, HQ, PQ. The TW series has thin-walled drill pipes, which are light in weight and suitable for mountainous terrain. The Q series is relatively heavy, and it is relatively durable when it encounters complex formations.
Tehnical Parameter:
| Models | GL-1080 | GL-780 | GL-580 | GL-380 | ||
| 技术参数Technical Parameters | ||||||
| 钻逬能力Drilling Capacity | Rod | Core Diameter | 钻进深度(M) Drilling Depth | 钻进深度(M) Drilling Depth | 钻进深度(M) Drilling Depth | 钻进深度(M) Drilling Depth |
| BTW | 42mm | 1404 | 1404 | 754 | 494 | |
| NTW | 56mm | 1080 | 780 | 580 | 380 | |
| HTW | 71mm | 540 | 390 | 290 | 152 | |
| PQ | 84mm | 216 | 117 | 87 | ||
|
液压系统Hydraulic System 力士乐变量油泵 The variable pump(rexroth) |
额定压力(mpa) Presure | 28 | 28 | 28 | 28 | |
| 冷却方式Cooling |
水冷 Water-cooling |
水冷 Water-cooling |
水冷 Water-cooling |
水冷 Water-cooling |
||
| 重量(kg)Weight | 29*4 | 29*3 | 29*2 | 29 | ||
|
液压油箱重量(kg) The hydraulic oil tank Weight |
45 | 32 | 23 | |||
|
操作台重量(kg) Work station Weight |
150 | 120 | 105 | 90 | ||
