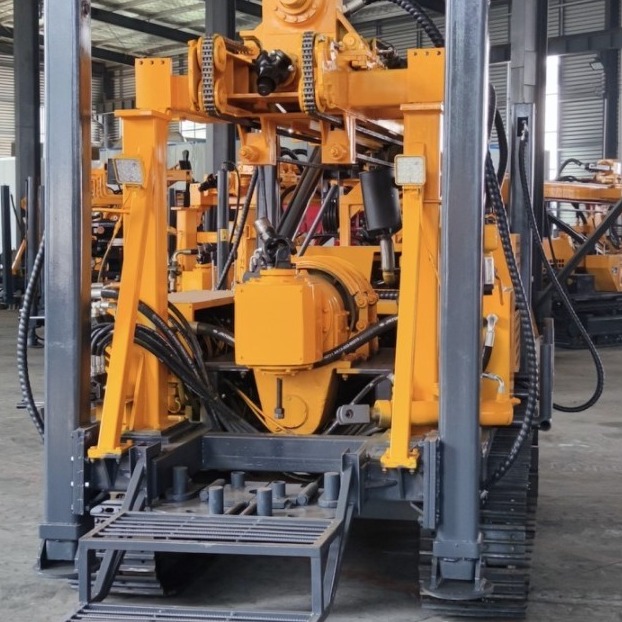

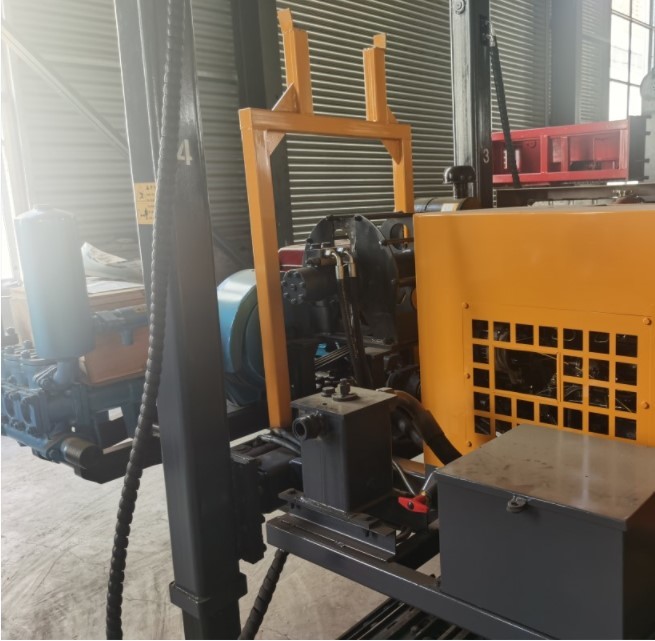

GDL-350 Borehole Drilling and Wireline Sampling Multifunctional Exploration Drilling Rigs
ABOUT GDL-350 DRILL RIG:
GDL-350 Multifunctional Exploration Drilling Rigs are both available for borehole water well drilling and rock sampling. It can be used for mud pump drilling, DTH air drilling and wireline core drilling.
Main features:
1. The drill speed can reach 27-901r/min, and the maximum output torque is 10500N.m.
2. The drilling rig adopts a long-stroke double-speed mechanism, a mechanical power head, and a power head stroke of 3500mm, which is used to improve drilling efficiency and reduce the occurrence of drill blocking and burning accidents.
3. The drilling rig adopts double oil pumps for oil supply. A single pump is used when drilling, and two pumps are used for confluence when lifting and lowering the drill. The power loss is small and the auxiliary time is short.
4. The crawler chassis is adopted, and the outrigger cylinder stroke is 1.5m, which can be loaded automatically, which is convenient for relocation and transportation.
5. The drilling rig reserves some functional interfaces in the mechanical and hydraulic systems, which can be expanded according to the technological requirements of different users.
Tehnical Parameter:
| Technical Specification | ||
| Drilling capacity | Drilling depth for water well | 300m(152mm~203mm) |
| Wireline coring NQ size | 450~500m | |
| Borehole (Drill bit) dia. | Ø75～Ø350mm | |
| Drilling angle | 90° | |
| Drive head | Lifting capacity | 120KN |
| Thrusting capacity | 85KN | |
| Rotary speed RPM | Forward:27,51,93,129,156/ 193,247,437,737,901 r/min | |
| Reverse:48/219 r/min | ||
| Max. Torque | 10500N.m | |
| Power Unit | Engine Model | YN27GBZ |
| Rated power/speed | 58KW(65KW optional)/ 2400r/min | |
| Mechanical winch capacity | 4.5 Ton | |
| Drill pipe | Drill pipe dia. | Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ |
| Drill pipe length | 3000mm | |
| Mud pump(optional) | BW160/ BW200/ BW250 | |
| Generator(optional) | ||
| Air lubricator (Optional) | ||
| Crawler chassis | Walking speed | 0～2 km/h |
| Climbing angle | Max. 25°~30° | |
| High leg stoke | 1.5M | |
| Dimension | Transport | 5400*2000*2600mm |
| Working | 3800*2400*7600mm | |
| Weight with steel crawler | 6500kg | |
Company Profile
We are a professional manufacturer and exporter of drilling rigs and drilling tools. We can provide water well drilling rigs, core drilling rigs, HDD drilling rigs, DTH drilling rigs and other products, and we can also provide supporting mud pumps, air compressors, drill pipes, drill bits, mud motor, etc. With more than 20 years of experience, we are confident to be your long-term and stable partner. Please contact us for more information.
FAQ:
Q1. Are you manufacturer or trader?
A: We are a manufacturer and we have our own trading company as well.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% when machine ready.
Q3. How about your delivery time?
A: Generally, it will take 15-25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
